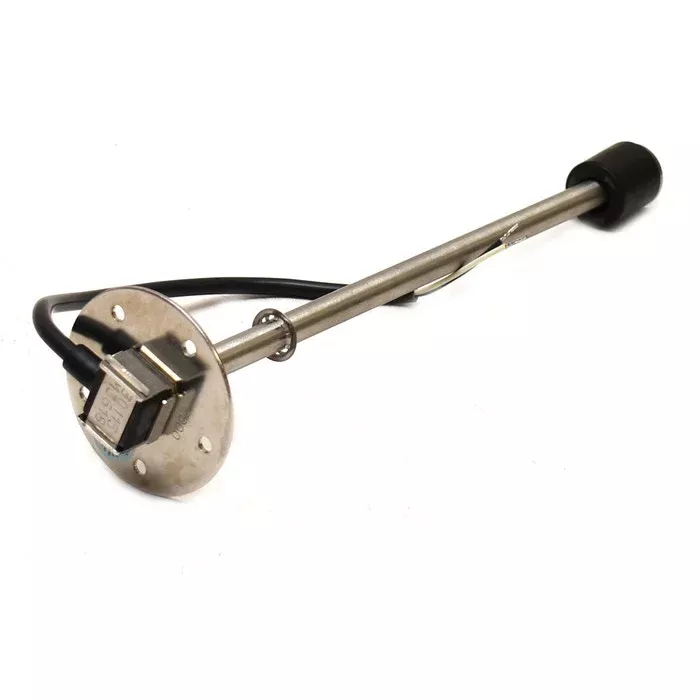

Boat part number 1118419 is a new 9800 Series reed switch style fuel sending unit from Rochester Sensors, part number A001060 .
This sending unit is constructed out of stainless steel with a nitrile rubber float. It measures approximately 2 3/4″ Dia. x 11 1/2″ H overall, with a 1/2″ Dia. shaft. It connects via wire leads and is rated for 30 – 240 Ohms. It mounts via (5) 3/16″ Dia. mounting holes.
Note: Does NOT include gasket.
Specifications:
- Part Manufacturer: Rochester Sensors
- Series: 9800
- Part Number: A001060
- Material: Stainless Steel / Nitrile Rubber
- Color: Silver / Black
- Ohms Range: 30 – 240 Ohms
- Overall Dimensions: 2 3/4″ Dia. x 11 1/2″ H
- Shaft Diameter: 1/2″ Dia.
- Mounts: (5) 3/16″ Dia. Mounting Holes
- Connections: Wire Leads
