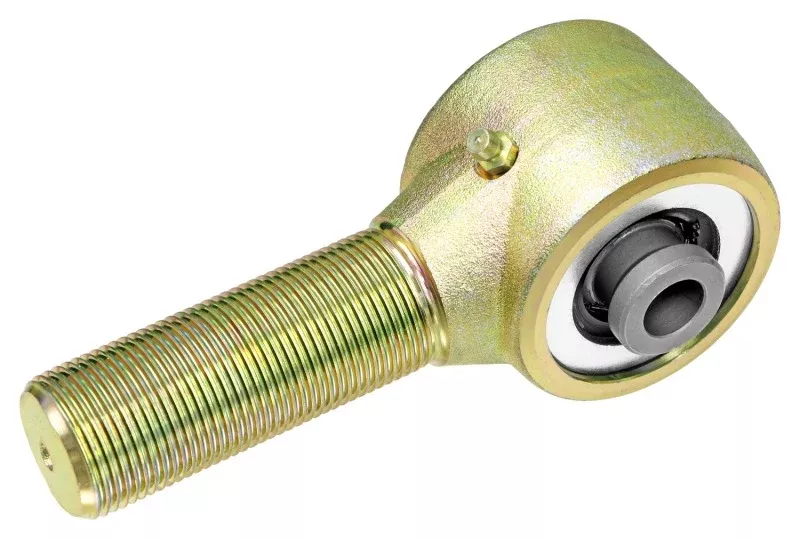

RockJock Johnny Joint Rod End 2 1/2in Forged 2.440in x .570in Ball 1 1/4in-12 RH Thread Shank

RockJock’s forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 1/2 in. diameter, fitted with a zerk fitting for greasing, 2.3 in. of 1 1/4 in.-12 right hand threads on the shank, and a 2.440 in. mounting width ball with a .570 in. thru bolt hole. Finished in gold zinc plating.
Johnny Joint? Rod End; 2 1/2 in.; Forged; 2.440 in. x .570 in. Ball; 1 1/4 in. 12 RH Threaded Shank; Externally Greased;
