Boat part number 1063315 is a new Rite-Lift shore station bracket kit from Roll-Rite, part number 24771 .
This bracket kit is used with power kit 2477 on shore station winches that use 1012 gear motors (winch and power kit not included).

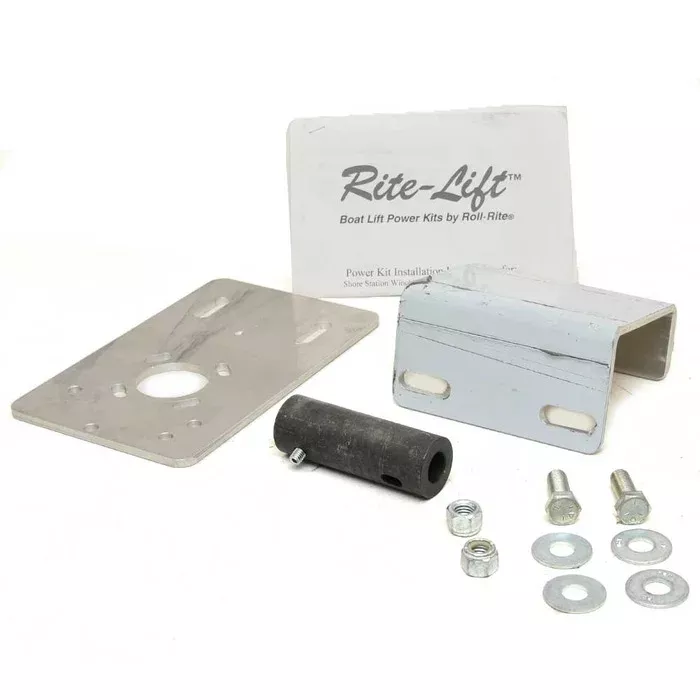

This kit includes the following:
- (1) Bracket
- (1) Face Plate
- (1) Cylinder
- Hardware
- Power Kit Installation Instructions
The mounting bracket and face plate are constructed of stainless steel. It measures approximately 6″ W x 3 1/4″ H x 4 3/8″ D overall. It has (2) 1 1/2″ W x 1/2″ H mounting slots and (1) 3/4″ Dia. mounting hole.
The face plate measures approximately 9 1/2″ W x 6″ H overall and has the following mounting holes:
- (2) 1 1/2″ W x 1/2″ H slots
- (4) 3/4″ W x 3/8″ H slots
- (1) 2″ Dia.
- (4) 3/8″ Dia.
Tag reads: 2992250 SHORE STATION BRACKET ( 85690 ) 24771
Note: There is a protective layer on the bracket; see photos. May contain minor scuffs and scratches; due to storage and handling.
Specifications:
- Part Manufacturer: Roll-Rite
- Part Number: 24771
- Material: Stainless Steel
- Color: Silver
- Bracket Dimensions: 6″ W x 3 1/4″ H x 4 5/8″ D
- Bracket Mounts: (2) 1 1/2″ W x 1/2″ H slots / (1) 3/4″ Dia. mounting hole
- Face Plate Dimensions: 9 1/2″ W x 6″ H
