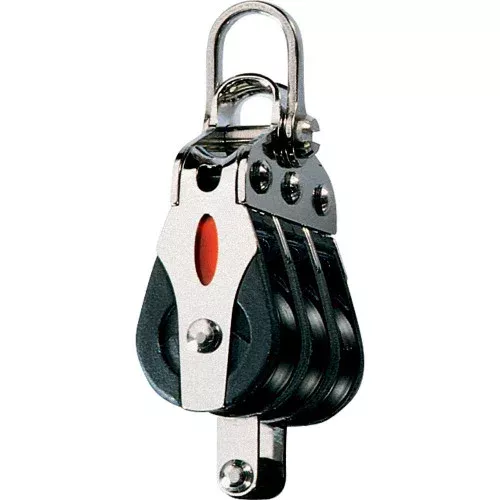

Ronstan Series 20 Ball Bearing Block – Triple – Becket – 2-Axis Shackle Head[RF20312]

Series 20 Ball Bearing Block – Triple – Becket – 2-Axis Shackle Head

Features:

• Low friction
• High static and dynamic load capacity
• Lightweight
• Precision molded Acetal sheaves running on stainless steel or Torlon® ball bearings provide high performance & low friction
• Two-Way head can be fixed at 0° or 90°

Applications:

• Dinghy control lines
• Dinghy vangs
• Cunninghams
• Traveller controls

Materials:

• Stainless steel ball bearings
• UV Stabilized Acetal sheave
• Grade 316 stainless steel load strap and head fitting
• Impact and UV resistant, fiber reinforced Nylon cheeks

Specifications:

Sheave Ø:20mm(3/4″)

Max. Rope Ø:6mm(1/4″)

PinØ:4mm(5/32″)

M.W.L.:400kg(880lbs)

B. L.:850kg(1,870lbs)

Weight:64g(2.3oz)
