02 · Overview
Ronstan Series 75 Ultimate Ratchet – Single — Product

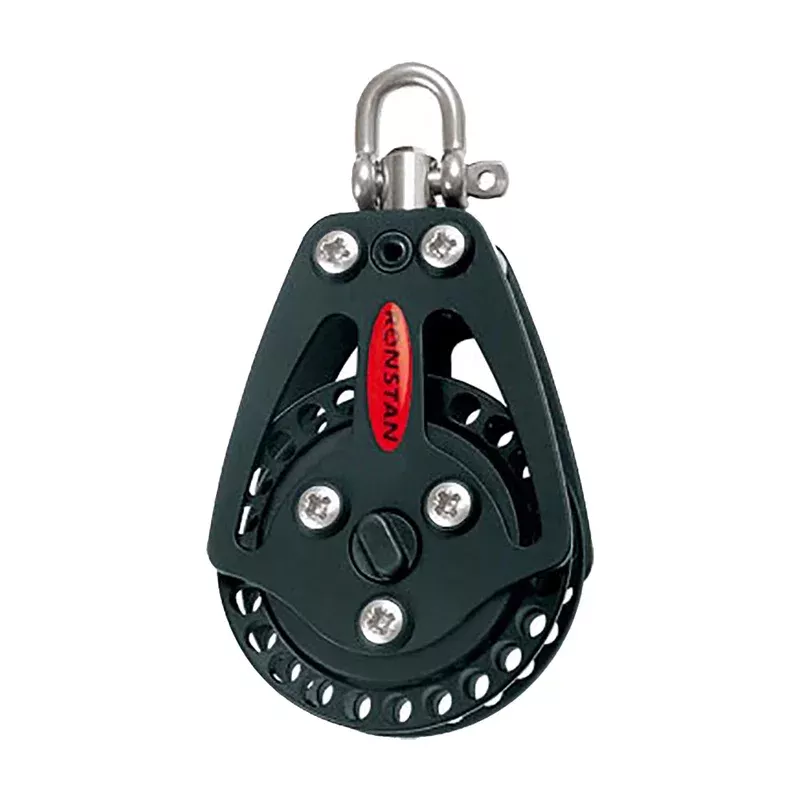

Series 75 Ultimate Ratchet – Single
The extruded hole design, in conjunction with the groove profile of the sheave, provides a more powerful grip than conventional designs – up to 20:1 holding power. Unrivaled low weight is achieved by the use of a Torlon® ratchet pawl, high grade machined alloy sheave and black Acetal hubs and bearings. On-Off switching knob is fitted to both sides of the swivel blocks (one can be removed if desired). Ratchet blocks can be disassembled for servicing or customization.
Features:
- Unrivaled 20:1 holding power
- Dual sided On-Off switch
- Ability to operate On/Off switch under load
- Low friction ball bearing system
- Lightweight
- Cheek cut-outs for easy bearing maintenance
Applications:
- Mainsheet on powerful dinghies and skiffs
- Series 60 mainsheet systems on sports boats using RF7 mainsheet swivel units
- Control line applications on larger yachts
- Spinnaker sheets on sports boats and small keel boats (lateral lead blocks)
Materials:
- Carbon black Acetal ball bearings
- Anodised aluminium sheave and cheek plates
- Torlon® ratchet pawl
- Grade 316 stainless steel forged shackle
Specifications:
- Sheave Ø: 3″
- Max. Rope Ø: 1/2″
- Pin Ø: 9/32″
- M.W.L.: 930lb
- B. L.: 4400lb
- Weight: 5.7oz
Ronstan 75 series ultimate ratchet-single [RF72100] Blocks 75 series ultimate ratchet-single extrusion hole design, matching the groove profile of the pulley,…
SKU: NVN-66614
MPN: RF72100
UPC: 9316800305230
