Ronstan Wire Block – Ferrule Top w/Removable Nylontron® Sheave – 45mm (1-34/”) Sheave Diameter — Product

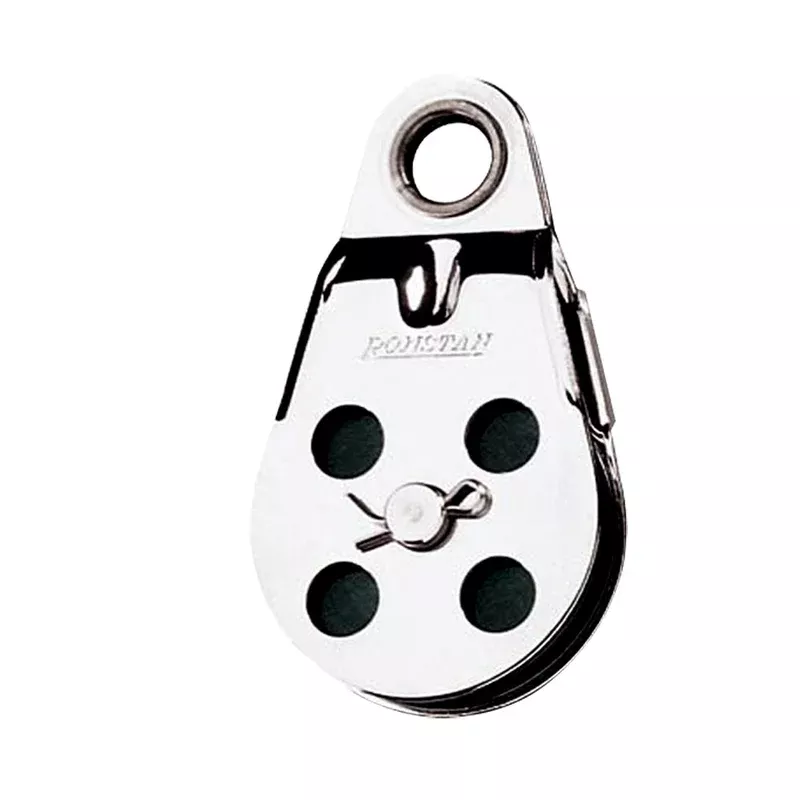

Wire Block – Ferrule Top w/Removable Nylatron® Sheave – 45mm(1-3/4″) Sheave Diamter

Wire blocks have purpose designed narrow sheaves and grooves.Removal sheave for easy fitting and without cutting the wire termination

Features:

• Flared cheeks to minimise chafing
• Removable sheaves

  Applications:
  Wire blocks suit halyards, vang and backstay applications

  Materials:

  • Grade 316 stainless steel cheeks
  • Nylatron® sheave

  Specifications:

  Sheave Ø: 45mm(1-3/4″)

  Max. Cable Ø: 6mm(1/4″)

  M.W.L:850kg(1,870lbs)

  B.L.: 1,700kg(3,740lbs)

  Weight: 80kg(2.8oz)

  The terms “pulley” and “pulley” are interchangeable. Suitable for wires from 3/32″ to 5/32″. These high-load wire blocks are used for slings, back supports, boom trucks and many other wires…

  SKU: NVN-55034

  MPN: RF104

  UPC: 9316800054091
