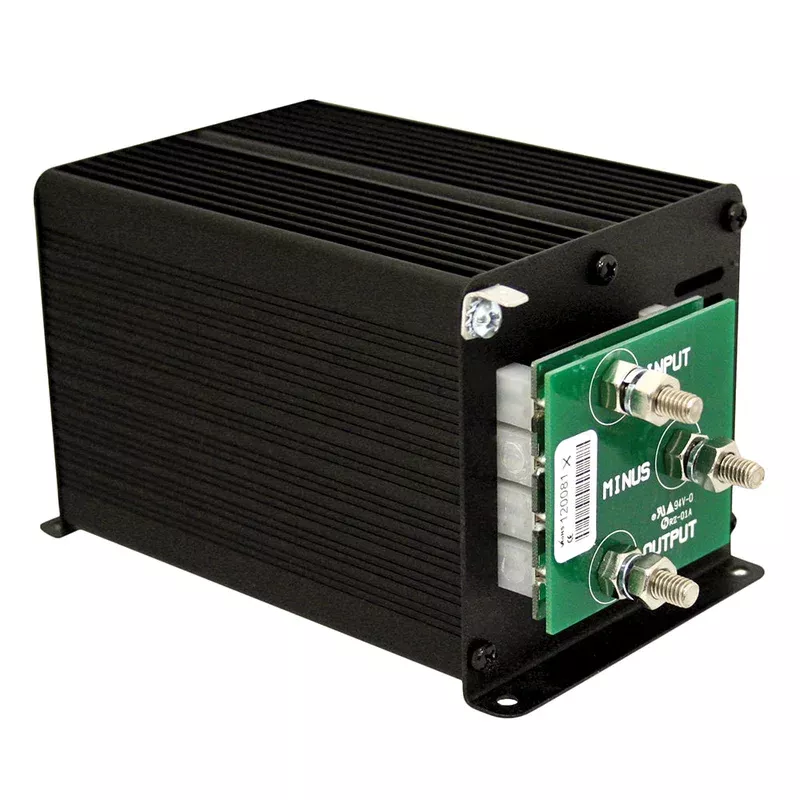

Samlex 60A Non-Isolated Step-Down 24VDC-12VDC Converter — Product
60A Non-Isolated Step-Down 24VDC-12VDC ConverterThis high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 60 Amps. The SDC-60 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overload, over-heating, reverse polarity and over-voltage protection.Features:
- Advanced switchmode design
- Mount in almost any location
- Compact and light weight
- Reverse polarity protection
- High efficiency
- Overvoltage protection
- Short circuit protection
Specifications:
- Input: 20-35 VDC
- Output: 13.8 VDC
- Amps: 60 Amps
- Weight: 2.8 (lbs)
- Weight: 1.27 (kg)
- Dimensions: 5.5 x 3.5 x 3.75 (in)
- Dimensions: 14 x 8.9 x 9.5 (cm)
- Warranty: 2 Year Limited
Applications:
- Earth moving equipment
- Heavy trucks
- Buses
- Marine vehicles
- CB radios
- 12 Volt lighting systems
- AM/FM sound systems
The SDC-60 DC-DC converter is non-isolated (there is no electrical isolation between input and output) and is suitable for negative grounding systems. Functions include overload, overload…
SKU: NVN-67250
MPN: SDC-60
UPC: 622988067501
