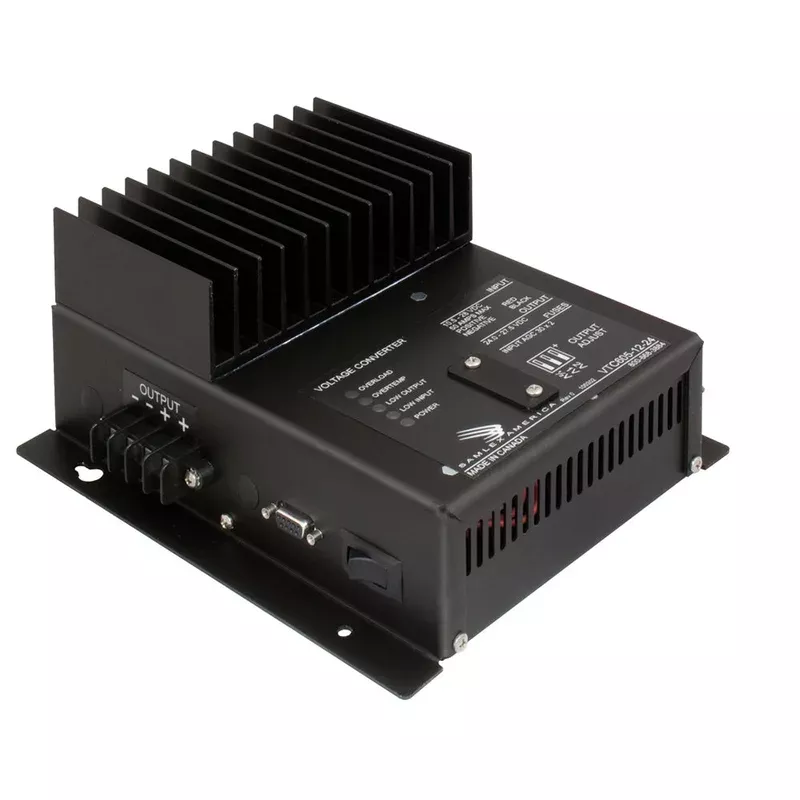

Samlex Step-Up DC-DC Converter – 20-45A – 10.5-28V Input – 24-27.5V Output — Product
Step-Up DC-DC Converter – 20-45A – 10.5-28V Input – 24-27.5V OutputFeatures:The actual output current capability depends upon the input/output voltage ratio. To obtain the actual output current capability at any given input voltage, use the following formula:
Output Amps=Input Volts/Output Volts x 45.
- Shock and vibration tolerance
- Mount in almost any location
- Compact and light weight
- Reverse polarity protection
- Current limiting circuit
- Overvoltage crowbar circuit
- Non-Isolated for negative ground system
- Ultra quiet low EMI operation
- Rugged Marine grade aluminum case
Specifications:
- Input: 10.5-28 VDC
- Output: 24 VDC
- Amps: 22.5-45 Amps
- Weight: 6 (lbs)
- Weight: 2.7 (kg)
- Dimensions: 9.1 x 7.8 x 4.3 (in)
- Dimensions: 23.1 x 19.8 x 10.8 (cm)
- Warranty: 2 Year Limited
Applications:
- RV vehicles
- Heavy trucks
- Buses
- Marine vehicles
- Land mobile radios
- CB radios
- 12 Volt lighting systems
- AM/FM sound systems
- Solar/Alternative power systems
- Any 12V or 24V equipment
The actual output current capability depends on the input/output voltage ratio. To obtain the actual output current capability at any given input voltage, use the following method:
SKU: NVN-67275
MPN: VTC-605-12-24
