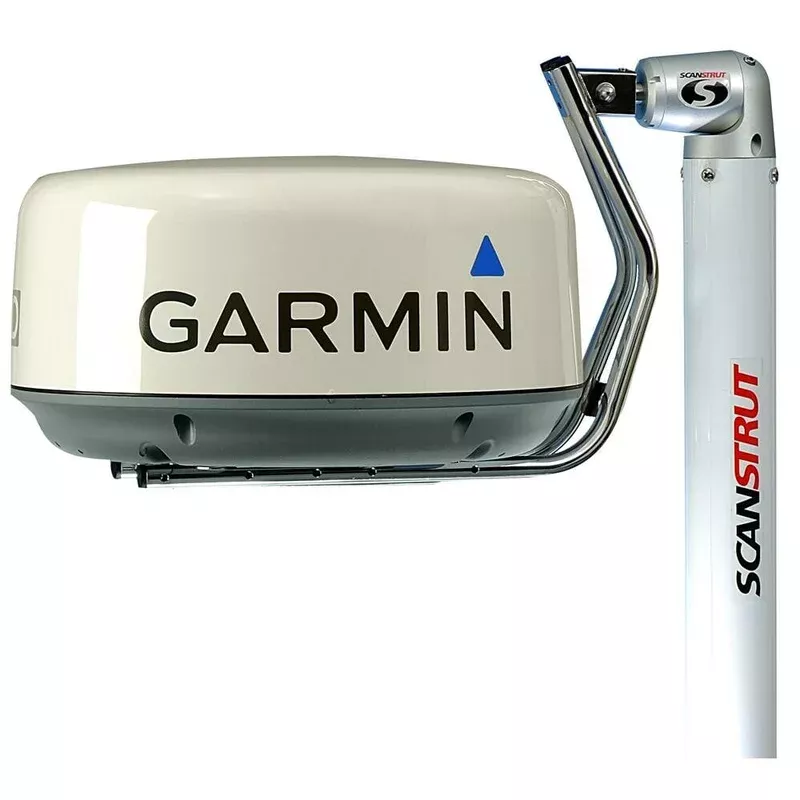

The Scanstrut LMP-1 Self Leveling Pole Radar Device Mount Raymarine Garmin Navico 2kW & 4kW Domes (LMP-1) from Nomadic Supply Company® ensures your radar stays level with the horizon at all times for optimum antenna performance. As the boat heels or rolls, the radar is kept horizontal preventing target loss and giving the best possible radar picture.Using our own fine-tuned hydraulic damping system, the radar mount reacts to major changes in heel angle of the boat whilst eliminating all small oscillations.Scanstrut LMP-1 Self Leveling Pole Radar Device Mount Raymarine Garmin Navico 2kW & 4kW Domes (LMP-1) Features:
- Sealed system – entirely maintenance free
- Universal adjustable base able to rotate through 360° and angle from horizontal all the way to vertical
- Supplied with two support modules – a deck strut and rail stand off for maximum fore / aft and sideways support
- Fits to angled decks, narrow swimming steps and steeply sloping transoms
- Unique pole extrusion with two cable channels with cover strips to hold cables in place
- Easily removed for racing or winter storage, leaving just low profile deck on deck
- Existing SC100 Pole Mount installations can be upgraded to self levelling with our upgrade kit
Scanstrut LMP-1 Self Leveling Pole Radar Device Mount Raymarine Garmin Navico 2kW & 4kW Domes (LMP-1) Specifications:
- 2.5m / 8.3′ pole
- 3″ diameter pole
- Base diameter of just 80mm / 3.1″
- Finest quality machined and anodised aluminum head unit – lasts the lifetime of your yacht
- Marine grade 316 stainless steel cradle and base plate
- Marine grade 6082 aluminum pole – polyester powder-coated for a durable and gloss white finish
Scanstrut LMP-1 Self Leveling Pole Radar Device Mount Raymarine Garmin Navico 2kW & 4kW Domes (LMP-1) Includes:
- 1 x Pole (complete with 2 x cable cover strips)
- 1 x Adjustable base
- 1 x Levelling head unit and cradle with plate
- 1 x 1200mm / 3.9′ deck strut
- 1 x Rail stand off for 25mm / 1″ rail
Scanstrut LMP-1 Self Leveling Pole Radar Device Mount Raymarine Garmin Navico 2kW & 4kW Domes (LMP-1) Documents:Scanstrut LMP-1 Self Leveling Pole Radar Device Mount Raymarine Garmin Navico 2kW & 4kW Domes Installation Guide
