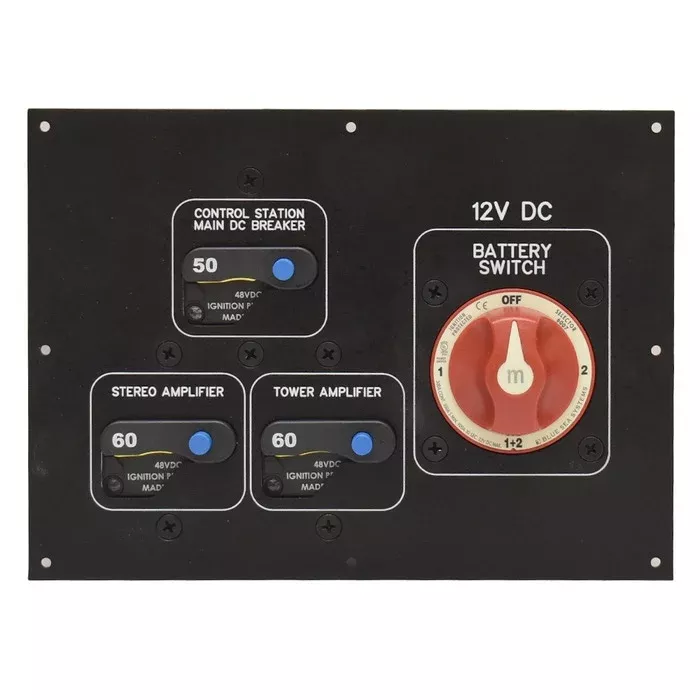

Boat part number 1117796 is a new battery switch and breaker panel for SDX 250 model Sea Ray boats, part number 2296451. Manufactured by Paneltronics.
This panel is constructed out of black aluminum with white text. It measures approximately 6 5/8″ H x 9″ W overall and mounts with (8) 1/8″ Dia. holes around the perimeter.
Panel Layout:
CONTROL STATION MAIN DC BREAKER | MP 50A 48VDC
STEREO AMPLIFIER | MP 60A 48VDC
TOWER AMPLIFIER | MP 60A 48VDC
12V DC BATTERY SWITCH | Blue Sea Systems m-Series Selector Switch 6007
Specifications:
- Boat Manufacturer: Sea Ray
- Model: SDX 250
- Part Number: 2296451
- Part Manufacturer: Paneltronics
- Part Number: Unavailable
- Material: Aluminum
- Color: Black
- Finish: Matte
- Overall Dimensions: 6 5/8″ H x 9″ W
- Mounts: (8) 1/8″ Dia. Holes
