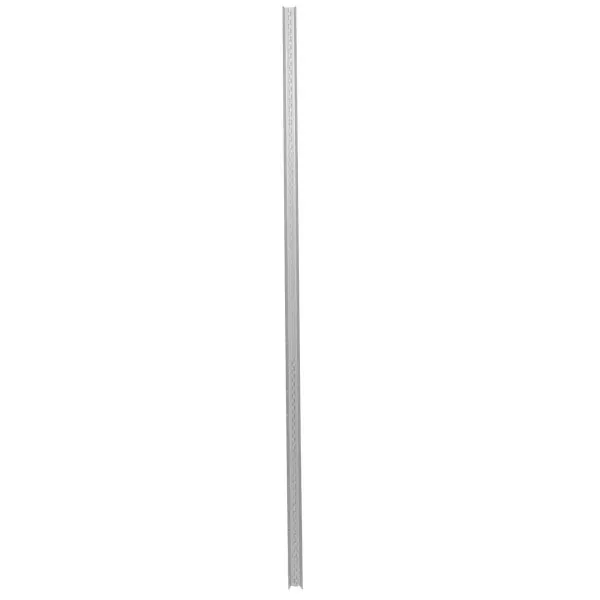

Boat part number 8502085 is a new 72″ double butterfly aluminum hinge for a Sea Ray boat, part number 1701735 . May be used on other boats.
This double butterfly / double offset, 16 gauge aluminum hinge measures 72″ long per manufacturer. Measures approximately 2 1/4″ W x 7/8″ H when flat and 1 1/4″ W x 1 1/4″ H when folded. See photos for measurements. Each leaf measures approximately 1″ wide. Each leaf has (24) 1/8″ holes spaced 3″ apart center on center.
Specifications:
- Boat Manufacturer: Sea Ray Boats
- Model/Year: Unavailable
- Part Number: 1701735
- Material: Aluminum
- Finish: Matte
- Overall Dimensions: 72″ L x 2 1/4″ W x 7/8″ D (Flat)
- Pin Diameter: 1/8″
- Mounts: (48) 1/8″ Holes Spaced 3″ CTC
