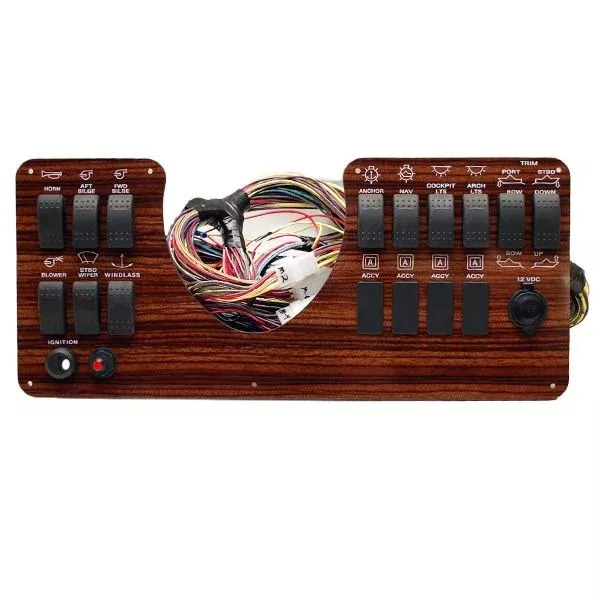

Boat part number 1042852 is a new ignition switch panel for Sea Ray Boats, part number 1963513 .
This ignition switch panel is constructed out of brown plastic with a faux woodgrain finish. It measures approximately 20″ L x 8 3/4″ H overall. It mounts via (7) 3/16″ Dia. mounting holes and connects via (3) 8-pin male, (1) 9-pin male, (1) 7-pin male, (1) 5-pin male, (4) 7-pin female, (1) 8-pin female, (1) 4-pin female, (1) 9-pin female, and (1) Mercury 9-pin male interconnector.
Features the following:
- On/Off Aft Bilge
- On/Off Fwd Bilge
- On/Off Blower
- On/Off STBD Wiper
- On/Off Anchor Lights
- On/Off Cockpit Lights
- On/Off Arch Lights
- On/Off Nav Lights
- Momentary On/Off Trim Port
- Momentary On/Off Trip STBD
- Momentary On/Off Horn rocker switch.
- (4) Blank ACC Cutouts
- (1) 3-Position Inboard Ignition Switch
- (2) Keys
- (1) 6 1/2″ W x 6 3/8″ H Steering Wheel Cutout
Specifications:
- Boat Manufacturer: Sea Ray Boats
- Part Number: 1963513
- Material: Plastic
- Color: Brown
- Overall Dimensions: 20″ L x 8 3/4″ H
- Mounts: (7) 3/16″ Dia. Mounting Holes
- Connections: (3) 8-pin male, (1) 9-pin male, (1) 7-pin male, (1) 5-pin male, (4) 7-pin female, (1) 8-pin female, (1) 4-pin female, (1) 9-pin female, and (1) Mercury 9-pin male interconnector
