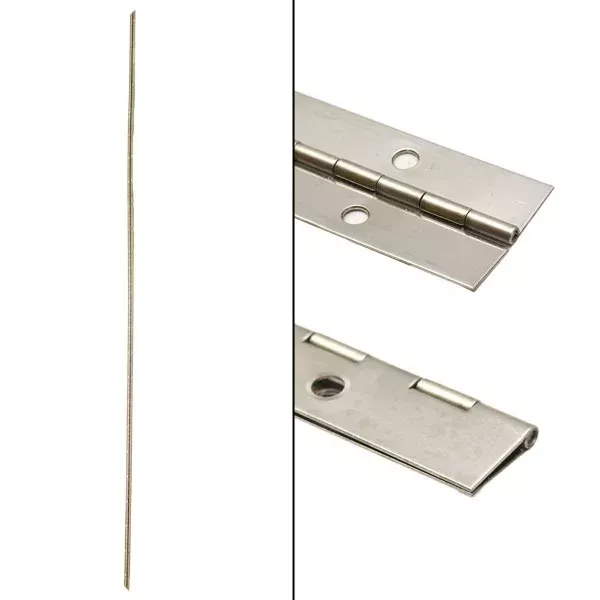

Boat part number 1066285 is a new 72″ L piano hinge for Sea Ray Boats. May be used on other boats.
This piano hinge is constructed out of 20 gauge stainless steel and measures approximately 72″ L x 1 1/2″ W overall, 3/4″ folded. It has (24) 1/8″ mounting holes, on each side of the hinge, set apart 3″ center-to-center. It has a 1/8″ pin.
Specifications:
- Boat Manufacturer: Sea Ray Boats
- Material: Stainless Steel
- Gauge: 20
- Pin Diameter: 1/8″
- Overall Dimensions: 72″ L x 1 1/2″ W (7/8″ folded)
- Mounts: (24) 1/8″ mounting holes, set apart 3″ CTC
