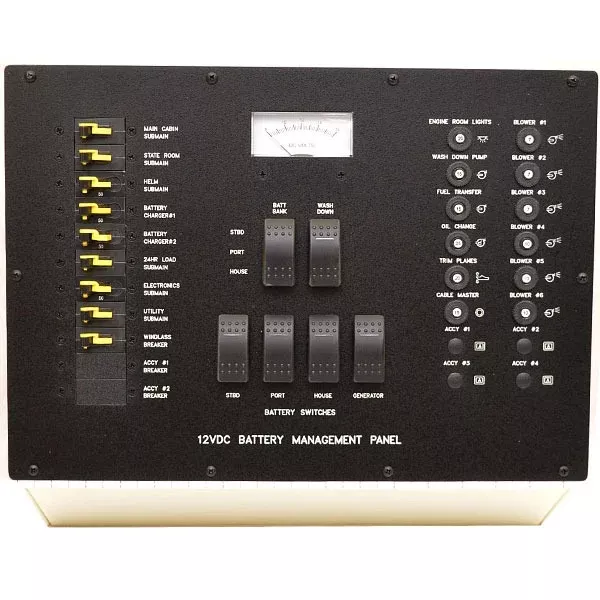

Boat part number 8502015 is a new 12 V DC power distribution assembly for 2011 Meridian 441 Sedan model Sea Ray Boats, part number unavailable . Manufactured by Paneltronics, part number 2075534 .
This 12 volt power distribution assembly measures approximately 19 3/4″ long x 15 1/8″ high x 9 3/4″ deep overall. Includes 8-16 DC Volt display.
Includes the following rocker switches:
- (1) Starboard / Port / House Battery Bank | On/Off/On
- (1) Starboard / House Washdown | On/Off
- (1) Starboard Battery | On/Off
- (1) Port Battery | On/Off
- (1) House Battery | On/Off
- (1) Generator Battery | On/Off
Includes the following push-button breakers:
- (1) 20 Amp Engine Room Lights
- (1) 15 Amp Wash Down Pump
- (1) 15 Amp Fuel Transfer
- (1) 25 Amp Oil Change
- (1) 20 Amp Trim Planes
- (1) 15 Amp Cable Master
- (3) 7 Amp Blower
- (3) 10 Amp Blower
Includes the following locking breaker switches:
- (1) Main Cabin Submain
- (1) State Room Submain
- (1) Helm Submain
- (2) Battery Charger
- (1) 24 Hr Load Submain
- (1) Electronics Submain
- (1) Utility Submain
- (1) Windlass Breaker
Includes (6) accessory breakers without switches or push-buttons.
Includes the following labeled battery cable mounting studs:
- (2) Accessory
- (1) Cabin Main
- (1) Electronics
- (1) Windlass
- (2) Battery Charger
- (1) House Battery
- (1) Unswitched
- (1) Stateroom Main
- (1) Helm Main
Includes (2) 12 pin male connections, (1) 8 pin male connection, and (2) 10 pin male connections. Hosts (2) 1/4″ diameter mounting holes and (2) 1″ L x 3/4″ mounting slots as shown in photos.
Specifications:
- Boat Manufacturer: Sea Ray Boats
- Year: 2011
- Model: Meridian 441 Sedan
- Part Number: Unavailable
- Part Manufacturer: Paneltronics
- Part Number: 2075534
- Overall Dimensions: 19 3/4″ L x 15 1/8″ H x 9 3/4″ D
- Connections: (2) 12 pin male connections, (1) 8 pin male connection, and (2) 10 pin male connections
- Mounts: (2) 1/4″ diameter mounting holes / (2) 1″ L x 3/4″ mounting slots
