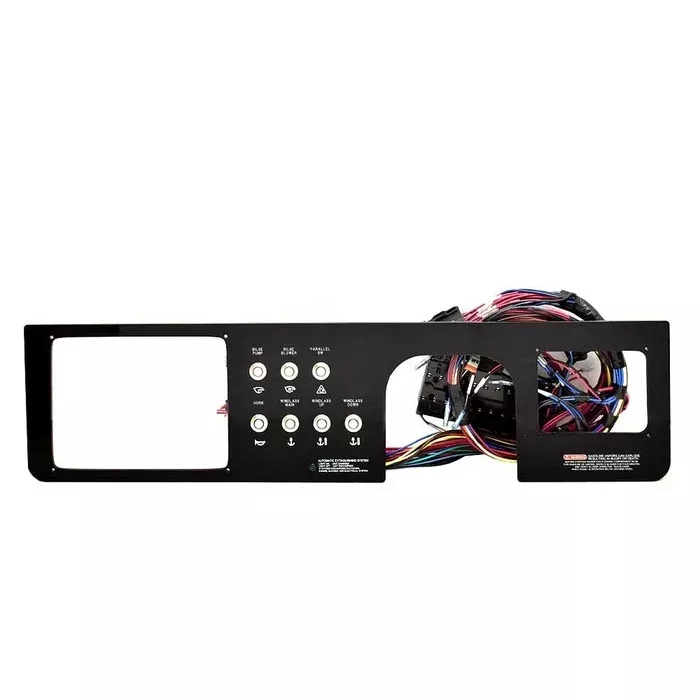

Boat part number 8502598 is a new switch panel for an SXO 350 model Sea Ray Boat, part number 2245514 . Manufactured by Kauffman Engineering, part number 85233556 .
This switch panel is constructed out black acrylic with a glossy finish. Measures approximately 33 1/8″ W x 8 1/8″ H overall. Mounts with (7) 8-32 x 1 3/16″ L threaded bolts affixed to the back. Has (8) 1/8″ Dia. mounting holes. Fuse panel has (18) fuse slots.
Features the following cutouts:
- (1) 9 1/8″ W x 6 3/4″ H
- (1) 5 1/2″ W x 4 1/8″ H
Features the following Push Button Switches:
- (1) Illuminated ON/OFF Bilge Pump
- (1) Illuminated Momentary ON/OFF Bilge Blower
- (1) Illuminated Momentary ON/OFF Parallel SW
- (1) Illuminated Momentary ON/OFF Horn
- (1) Illuminated ON/OFF Windlass Main
- (1) Illuminated Momentary ON/OFF Windlass Up
- (1) Illuminated Momentary ON/OFF Windlass Down
Manufacturer tag reads P/N: 85233556 SRB PART 2245514 . 2224513-734000575 SEA RAY 350SXO B21 GLOSSY.
Specifications:
- Boat Manufacturer: Sea Ray
- Model: SXO 350
- Part Number: 2245514
- Part Manufacturer: Kauffman Engineering
- Part Number: 85233556
- Material: Acrylic
- Color: Black
- Finish: Glossy
- Overall Dimensions: 33 1/8″ W x 8 1/8″ H
- Mounts: (7) 8-32 x 1 3/16″ L threaded bolts
