Boat part number 1100603 is a new set of (2) trim tabs for Sea Ray Boats, part number 2148530 . Manufactured by Bennett Marine, part number unavailable. May be used on other boats.
Set includes the following:
- (1) Port Trim Tab
- (1) Starboard Trim Tab
- (2) Actuators
- Hardware

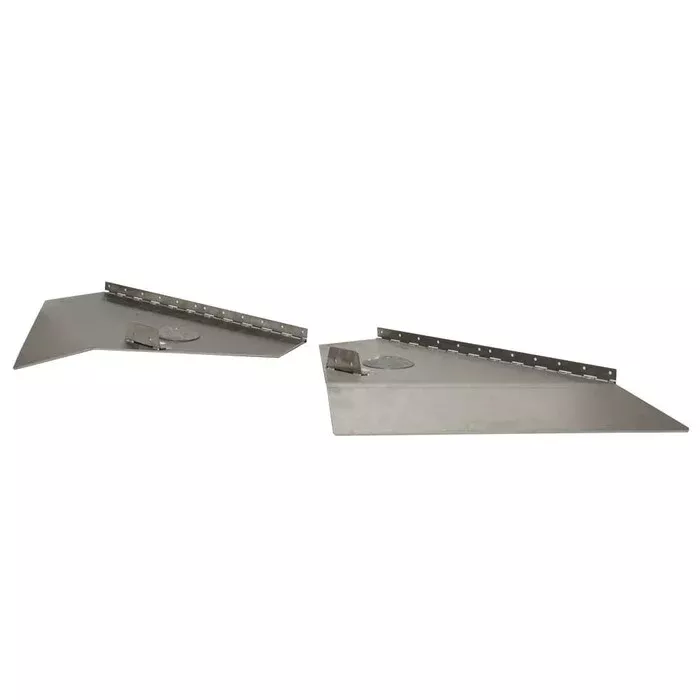

These trim tabs are constructed out of 6 gauge stainless steel with a brushed and are called 23″ x 23″ per manufacturer. We measure each trim tab to be approximately 22 1/4″ W x 23″ L x 2 3/4″ H overall, with (2) 1/4″ Dia. and (12) 3/16″ Dia. mounting holes per tab.
See photos for additional measurements.
Specifications:
- Boat Manufacturer: Sea Ray
- Model/Year: Unavailable
- Part Number: 2148530
- Part Manufacturer: Bennett Marine
- Part Number: Unavailable
- Material: Stainless Steel
- Color: Silver
- Finish: Brushed
- Manufacturer Dimensions: 23″ x 23″
- Overall Dimensions: 22 1/4″ W x 23″ L x 2 3/4″ H
- Mounts: (2) 1/4″ Dia. / (12) 3/16″ Dia. mounting holes (per trim tab)
