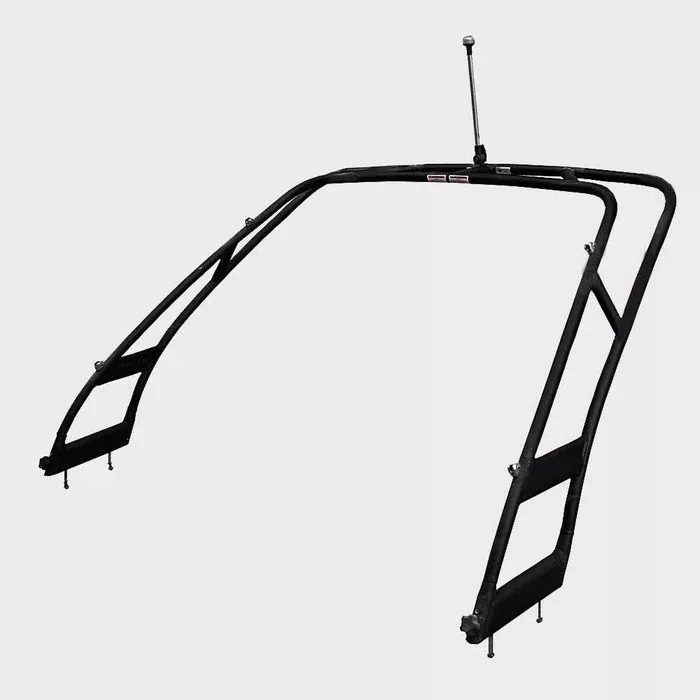

Boat part number 1091466 is a new Xtreme wakeboard tower for 270 Sundeck model Sea Ray Boats, part number 2211890 .
This tower is constructed out of black powder coated 1 3/4″ Dia. tubing. The base has pre-drilled mounting holes with threaded bolts for easy installation. Features (1) navigation light mounted on top. Measures approximately 94″ W x 67″ D x 56 1/4″ H overall. Has mounts that are approximately 98″ apart center on center. See photos for additional measurements.
Approximate Measurements:
- Total Height (with light): 56 1/4″
- Total Height (without light): 45 1/4″
- Base Front Mount to Back Mount (center to center): 16 3/4″
- Base Mount to Mount Width (center on center tubing): 92″
- Base Mount to Mount Inside Width: 89 1/2″
- Furthest Front to Furthest Back: 67″
Specifications:
- Boat Manufacturer: Sea Ray Boats
- Model: 270 Sundeck
- Part Number: 2211890
- Color: Black
- Tubing Diameter: 1 3/4″ Dia.
- Finish: Powder Coated
- Overall Dimensions: 94″ W x 67″ D x 56 1/4″ H
Please see photos for additional measurements
Sold “As Is”. All Sales on this item are Final.
Because of the size and/or commodity of this item, we must ship via truckline. The shown freight cost is for the LOWER 48 STATES ONLY and shipped to a business at a commercial address WITH LOADING DOCK. We can ship to your residence, or possibly a nearby terminal. We can also offer international shipping. Please call or email for a shipping quote if needed.
Sold as seen in pictures. Customers please note every computer shows colors differently. All measurements are approximate.
Hardware and instruction / installation manual not included.
