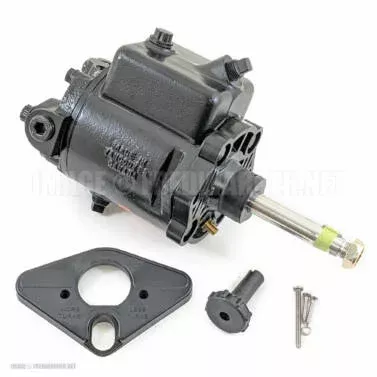

New SeaStar Solutions (Teleflex Marine) Capilano helm. Part number HH5250. Model 1250 V.
Specifications
| Displacement | 1.7 cu.in. – 3.4 cu.in. (27.8 cc – 55.7cc) |
|---|---|
| Relief Valve | 1000 PSI – (70 Bar) |
| Ports | 3/8″ NPT |
| Steering Wheel Minimum Diameter | 20″ (500mm) |
| Steering Wheel Maximum Diameter | 36″ (941mm) |
| Helm Pump Shaft | 3/4″ Standard Taper |
| Cylinder Stroke | 7″ (178 mm) |
| Cylinder Volume | 10.2 cu.in. (167cc) |
| Torque at 1000psi 70 bar at 35 Degrees | 7117 in/lbs (81 Kg) |
