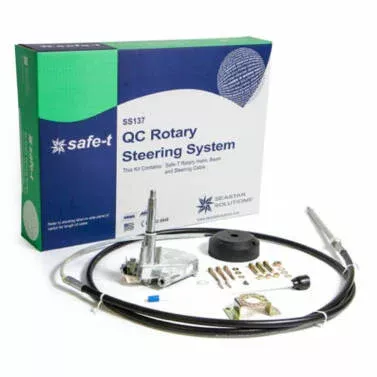

New SeaStar (Teleflex Marine) Safe-T QC mechanical rotary steering system. Part number SS13712. Includes cable, helm, and bezel to fully replace an existing steering system or as part of a new installation. Features a quick-response 3.0-turn lock-to-lock helm and a common 3/4″ tapered keyed steering shaft for wheels up to 16″. Suitable for most outboards up to 60 HP that have a tilt tube and link arm.
Cable Length (Important!)
This system comes with a 12 foot cable (SS137
12). Read the measuring guide in the product photos thoroughly to make sure it is what you need. The 12ft is measured from the helm connector to the end of the stainless shaft that connects to the link arm. If measuring an existing cable and you only measure the cable jacket, it will be too short!
Kit Contents for SS13712
| Name | Part Number | Qty |
|---|---|---|
| Helm | SH5094-1P | 1 |
| Bezel | SB27484P | 1 |
| Cable | SSC6212 | 1 |
| Hardware Kit | – | 1 |
| Instructions | – | 1 |
SeaStar Steering Reference Guide
Learn about this and other mechanical steering systems
| Series | Type | Turns | NFB | Model | Cable | Max HP | Max MPH |
|---|---|---|---|---|---|---|---|
| SS132 | Rotary | 3.0 | Y | NFB Safe-T II | SSC62 | 100 HP | 50 MPH |
| SS137 | Rotary | 3.0 | N | Safe-T QC | SSC62 | 60 HP | – |
| SS147 | Rotary | 4.2 | Y | NFB 4.2 | SSC62 | 130 HP | 50 MPH |
| SS141 | Rack & Pinion | 4.0 | N | The Rack | SSC134 | 75 HP | – |
| SS151 | Rack & Pinion | 4.0 | Y | NFB Rack | SSC134 | 150 HP | 50 MPH |
| SS152 | Rack & Pinion | 4.0 | Y | Dual Rack | SSC135 | 300 HP | 55+ MPH |
