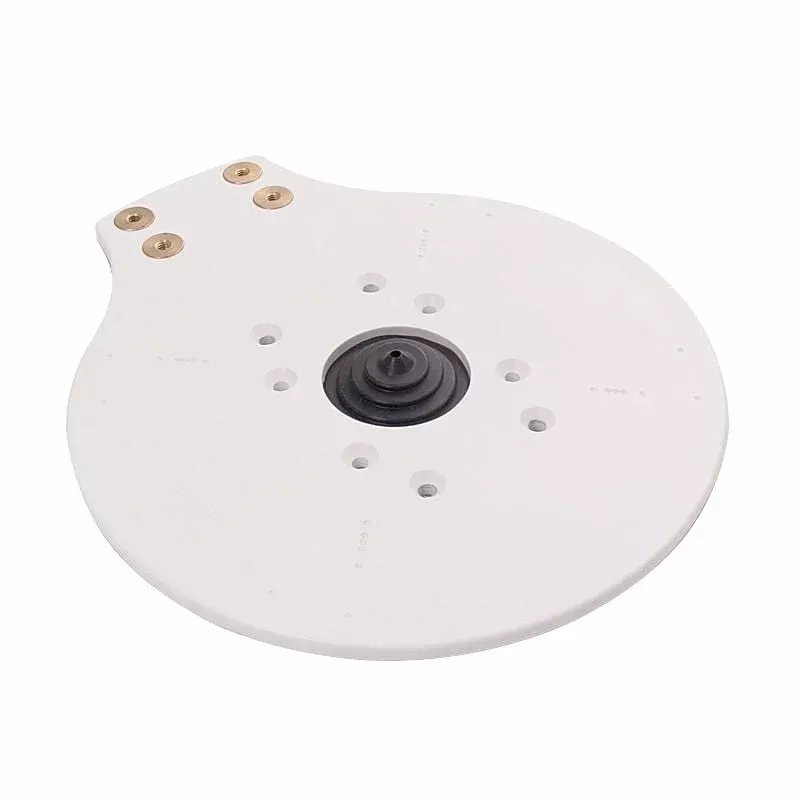

Seaview’s innovative new modular Seaview ADAS1 Top Plate for Small Satellite Domes from Nomadic Supply Company® features a unique universal plate design that provides a cleaner look and greater installation flexibility. A pre-drilled anodized aluminum plate is encased inside the UV-stable white ABS plastic. There are dimple holes on the top surface of the top plate that match up with a drill template, allowing you to precisely drill the appropriate holes for your specific radar. The end result is a nice clean look with no unwanted visible holes.
Seaview ADAS1 Top Plate for Small Satellite Domes Features:
- Seaview’s innovative new modular electronic mounts feature a unique universal plate design that provides a cleaner look and greater installation flexibility
- No more to the unwanted “Swiss Cheese” look with a Seaview modular top plate
- This top plate is pre-drilled and anodized
- Encased in UV-stable white ABS plastic
- Each top plate comes with a drill template for easy, precise drilling for your specific radar
- Each plate starts with a “pre-drilled” anodized aluminum plate
- Then it is encased in (molded inside) UV-stable white ABS
- You don’t see the aluminum plate, just there for strength
- There are dimple holes on the top surface of the top plate that match up with a drill template
- Allowing you to precisely drill the appropriate holes for your specific radar
- The only material that gets drilled is plastic
- The result is a clean-looking installation
Seaview ADAS1 Top Plate for Small Satellite Domes Compatibility:
- Intellian i1 (for modular parts ending in M1) / i2 / i3
- Glomex 20-inch-27-inch Satdomes (for modular parts ending in M1)
- KVH M1 (for modular parts ending in M1) / M2 / M3
- Thrane & Thrane Sailor FB500 / Fleet 55+
- Raymarine 33STV (for modular parts ending in M1) / 37STV
- Sea-King 1500HD
- Sea-Tel (Cobham) C14
- VDO Ocean Line 132 (for modular parts ending in M1) / Ocean Line 337.
| Step 1 | Select Mount Type this will be the base for the system |
| Closed Dome Radar, Small Satdomes (16-inch or smaller) & Cameras | |
| PMF-57-M1 | 5-inch Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMF-107-M1 | 10-inch Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-57-M1 | 5-inch Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-107-M1 | 10-inch Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-167-M1 | 16-inch Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-247-M1 | 24-inch Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-367-M1 | 36-inch Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| AM5-M1 | 5-inch Modular Mnt/ Vertical / 8-inch Rnd base plate / Light bar compatible / Top plate required |
| AM12-M1 | 12-inch Modular Mnt/ Vertical / 8-inch Rnd base plate / Light bar compatible / Top plate required |
| AM18-M1 | 18-inch Modular Mnt/ Vertical / 8-inch Rnd base plate / Light bar compatible / Top plate required |
| Open Array Radar | |
| PMA-57-M1 | 5-inch Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMF-57-M1 | 5-inch Modular Mnt/ FWD raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| Large Satdomes (18-inch – 24-inch) | |
| PMA-57-M1 | 5-inch Modular Mnt/ AFT raked / 7 x 7 base plate / Light bar compatible / Top plate required |
| PMA-1210-M2 | 12-inch Modular Mnt/ AFT raked / 10 x 10 base plate / Light bar compatible / Top plate required |
| PMA-1810-M2 | 18-inch Modular Mnt/ AFT raked / 10 x 10 base plate / Light bar compatible / Top plate required |
| Dual Mount & Arches | |
| PMA-DM1-M2 | 12.5-inch Dual Mount pre-drilled for most closed dome Radars. Top for Satellite domes / Top plate required |
| PMA-DM124-M2 (***) | 32.5-inch Extended Dual Mount pre-drilled for most closed dome Radars. Top for Satellite domes / Top plate required |
| PMA-DM2-M2 | 22.5-inch Dual Mount pre-drilled for up to 4.5 ft. Open Array Radar. Top for Satellite domes / Top plate required |
| PMA-DM3-M2 | 28-inch Dual Mount pre-drilled for up to 4.5 ft. Open Array Radar. Top for Satellite domes / Top plate required |
| Step 2 | Choose Top Plate |
| Radar (closed dome & open array 4′-6′) | |
| ADA-R1 | Modular plate for almost ALL closed dome and open array radars (Confirm proper fit with ref guide) |
| ADA-R2 | Modular plate for 24-inch JRC / Lowrance 2400HD / Northstar & Simrad DX64S Domes |
| Satdome | |
| ADA-S1 | 1 Modular plate for KVH M1/M2/M3, Intellian i1/i2/i3, Raymarine 33/37STV, SeaKing 1500/1800-HD, SeaTel ST14 |
| ADA-S2 | Modular plate for KVH M5/M7, Intellian i4/i6/d6, Raymarine 45/60STV, SeaTel C18/C24 |
| ADA-S3 | 2 Modular plate for KVH M1, Intellian i1/i2, Raymarine 33STV, SeaKing 1500/1800-HD |
| ADA-S4 | Modular plate for ALL FB150 & FB250 domes |
| ADA-F1 | Modular plate for FLIR M or Ray T series thermal cameras |
| Step 3 | Choose Optional Accessories |
| Light / GPS Bars | (Light bar top accessory required, see below) |
| LTB-R | 1 1/4-inch Light bar for closed dome radar / folds over 90 deg. / Must pick a LTB TOP below |
| LTB-OA | 1 1/4-inch Light bar for open array radar up to 4.5 ft. / Must pick a LTB TOP below |
| LTB-OA6 | 1 1/4-inch Light bar for open array radar at 6 ft. / Must pick a LTB TOP below |
| LTB-S | 1 1/4-inch Light bar for 18-inch or smaller satdomes / folds over 90 deg. / Must pick a LTB TOP below |
| LTB-S24 | 1 1/4-inch Light bar for 24-inch satdomes / folds over 90 deg. / Must pick a LTB TOP below |
| LTB-SF (***) | 1 1/4-inch Light bar for FLIR M or Raymarine T series thermal camera and light / Must pick a LTB TOP below |
| Light Bar Tops | (LTB TOP required with light bars above) |
| LTB-U | (LTB TOP) Standard 1-14 thread for GPS or similar |
| LTB-U1A | (LTB TOP) Universal Light bar top for mounting your own light and or GPS |
| LTBP-1197 | (LTB TOP) Perko 1197 light with 7′ of wire / USCG approved for boats up to 20 meters (65. 6 ft) in length. |
| LTBA-7800 | (LTB TOP) Attwood LED 7800 ser. light with 7′ of wire / USCG approved for boats up to 20 meters (65. 6 ft). |
| LTB-BOX | (LTB TOP) Universal box top for All-round, Masthead & Stern (lights not included) |
| Light Bar Accessories | |
| PM-114LT-DLX | Floodlight kit for 1 1/4 in. dia. LTB (includes 4-inch X 6-inch 55-watt 14V quartz halogen floodlight & hardware) |
| PM-114LT-LED (***) | Floodlight kit for 1 1/4 in. dia. LTB (includes LED floodlight & hardware) |
| PM-U2A | Light bar adapter to mount a light and 2 GPS (electronics not included) |
| Base Wedge | |
| PM-W4-7 | 4 degree wedge/ for 7×7 radar mount base plate |
| PM-W4-8 | 4 degree wedge/ for 8×8 radar mount base plate |
| Hinge Adapters for base plate | |
| PM-H7 | Hinge adapter/ for 7×7 base plate/ (fits most 5 -16 in. tall Radar Mounts) |
| PM-H8 | Hinge adapter/ for 8×8 base plate/ (fits most 24 -36 in. tall Radar Mounts) |
