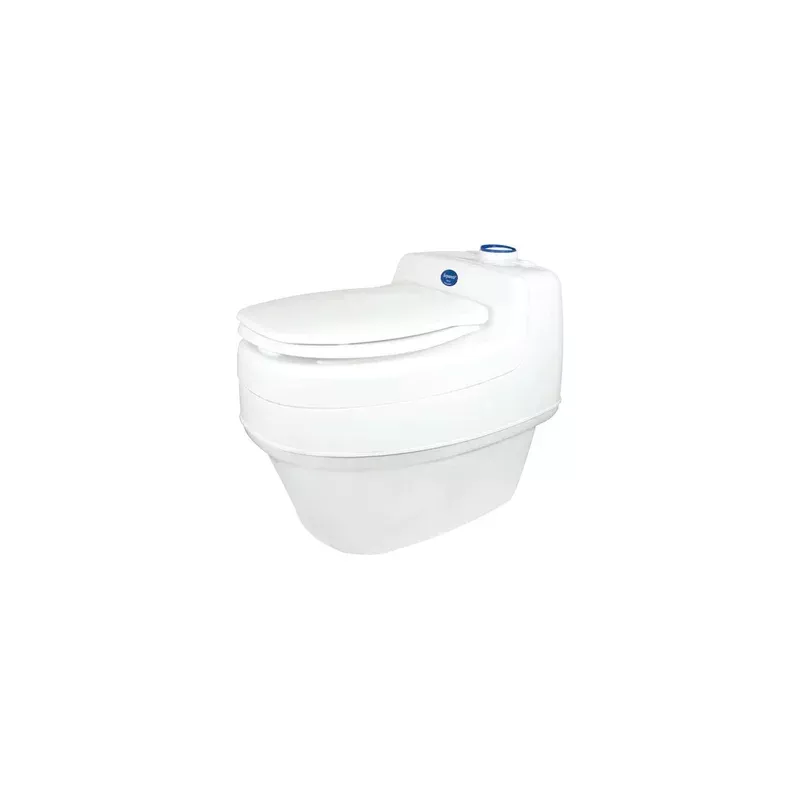

Looking for the most advanced Composting and Urine Diverting Toilet in the World? The Separett Villa Extend AC/DC Composting and Urine Diverting ToiletfromNomadic Supply Company® is the most advanced, trouble-free, composting toilet that exists for on-grid or off-grid living.With its unlimited capacity, the Separett Villa Extend Urine Diverting & Composting Toilet works just as well during continuous and alternating use. Therefore the Separett Villa Extend US AC/DC Urine Diverting & Composting Toilet is suitable for both part-time and permanent living.Unlike the Separett Villa 9215 toilet, theSeparett Villa Extend has a funnel leading down from the toilet instead of having a container inside the toilet. Villa Extend can be connected to our Separett 13-gallon container kit or to any other suitable container of any size, making theSeparett Villa Extend an optimal solution for those who want to maximize the time in between emptying.Separett Villa Extend US is completely waterless and is also urine diverting; this means the Separett Villa Extend US composting toilet allows solid waste to be stored for disposal while liquid waste is safely diverted into a storage tank or wastewater system. This results in less frequent bucket changes since the liquids never mix with the solids.The Separett Villa Extend US will operate on either AC (household, on-grid), or DC (battery/solar, off-grid) power! Separett Villa Toilet features a single speed fan, with adaptors for both AC and DC to support venting up to 20 ft. An AC only fan conversion kit is available for longer vent lengths. The DC adaptor cable uses a 5mm x 20mm type FST T2AL 250VAC fuse.The Separett Villa ships set for connection to DC power of a battery. To convert for AC power – you simply unplug the DC lead from the fan and plug in the AC adapter – which is similar to that used for most portable electric devices.
Separett Villa Extend Urine Diverting & Composting Toilet Features:
- Dimensions: 26.5″ L / 18″ W / 21.3″ H /
- Max Load: 330 Lbs
- Material: Recyclable, impact-resistant high-gloss polypropylene
- Connection: Battery Cable, 6.5 ft
- Energy Consumption: 0.06 kWh/ 24 hours
- Fan included for ventilation purposes
- Fan Noise Level: Less than 30 dB(A)
- 5-year Manufacturer Warranty against defects and 3-year warranty on the fan
Separett Villa Extend Urine Diverting & Composting Toilet Includes:
- Separett Villa® Extend toilet, 12V / 110-240 V
- User and installation manual
- Universal adapter for power socket
- Straight connector piece to fit the 90° bend
- 90° bend for the Ø3.5” ventilation pipe
- 1.47” long Ø3.5” pipe for simple ventilation installation through the wall
- Insect net and rain cap for Ø3.5” ventilation pipe
- Indoor flashing for the Ø3.5” ventilation pipe
- 6.6 ft white urine hose Ø32 mm to lead out the urine
- Indoor flashing for the Ø1.26” urine hose
- 90° bend for the Ø1.26” urine hose
- Straight connector for the Ø1.26” urine hose
- Silicone strip to seal the bottom of the toilet
- Wall mount for attaching the toilet
- 2 x wall mount to attach the urine hose
- Screws for mounting the toilet to the wall
- Installation template – has markings for drilling holes and attaching the toilet
Separett Villa Extend Urine Diverting & Composting Toilet Power Requirements:
Capacity requirements for your DC power system will vary by location and installation. The general requirements are as follows:
- Battery 60 to 75 amp.
- Cell size around 25 watts.
The external container
Villa Extend needs to be connected to an external solids container that is placed under the toilet area. Keep in mind that the space underneath the toilet needs to be accessible from the outside to facilitate emptying. In the delivery of the Separett Villa Extend Urine Diverting & Composting Toilet no external container is included. The Separett External container kit is available separately. When purchasing the accessory package, two external latrine containers of 13 gallons, 39 inches of drainpipe Ø 6.3 inches, connecting part to the latrine container, a lid with a hole, a solid lid and the necessary screws are included.
Toilet placement
Separett Villa Extend Urine Diverting & Composting Toilet has no requirements for room temperature and works in both cold and warm spaces. The only requirements are that you must be able to lead the urine away and fit a ventilation pipe.The toilet is made to be placed on the floor against the wall, and for extra stability, it should be attached to the wall.
Drill holes according to the installation template
The installation instructions show possible installation options for urine drain and ventilation pipe through the wall, the ceiling or the floor. The installation template shows the places for holes in a simple installation through the wall behind the toilet.
Install ventilation pipe
The toilet is designed for 3.5″ (schedule 40) ventilation pipe. Separett Villa can be installed with up to 6 meters of ventilation piping andthree 90-degree bends. Ventilated air can go through a wall, floor or ceiling, for example, up into an attic and out through a suitable side of the house. If there is already a ventilation pipe present from a previous toilet installation, the toilet may be connected to that duct, provided that it is not smaller than 3.5″and that it meets the piping requirements.The Separett Villa Extend Urine Diverting & Composting Toilet comes with a coupling for connecting the toilet to 3.5″ inch piping (schedule 40).
Install urine hose
The toilet is delivered with a 2-meter (6.6 ft) urine hose. To connect this to the toilet, use the included straight joint or the 90-degree joint. It is possible to connect the urine tube so that no pipe is visible where the toilet is installed. This is achieved by angling the 90-degree connection downwards or using the straight connection leading the pipe out through the wall behind the toilet.
Recommendations for installation of urine hose
As with the ventilation duct, Villa provides the option of installing the urine hose without any visible pipes/tubes in the bathroom. Below are a few tips that should be followed to maintain a well-functioning urine outlet over time and all year round.
- If you are going to go through an insulated wall or a wall with an air gap between the inner and outer wall, you must use a pipe for the penetration, or lead the hose through a pipe. Pipes are used to reduce the risk of pests causing damage to the tube.
- If you are going to run the urine a longer distance than the 2 meters (6.6 ft) of the supplied hose, you should switch to a pipe after the 2 meters (6.6ft). Since urine contains minerals that can accumulate in pipes/ hoses, we recommend that the subsequent pipe have a diameter of at least 40 mm (1.6″) to avoid blockages.
- Make sure that you always have a downward inclination of at around 2 degrees (2 cm per meter or 0.8 inch per 40 inch) throughout the piping, also make sure that there are no air pockets created by bends in the hose.
- If the toilet is to be used in winter, outdoor pipes must have a diameter of at least 40 mm (1.6”).
- If the toilet is to be used in winter, we recommend that you insulate outdoor pipes with pipe insulation. This insulation can be bought in most DIY stores.
- An important rule for longer installations (over 2 meters (6.6ft)) is that the sooner you switch to pipes with a larger diameter, the lower the risk of blockages in the pipes.
- Do not place pipe joints near electrical appliances or wall sockets. This is to prevent liquid from cominginto contact with electricity in the event of a leak
Separett Villa Extend Urine Diverting & Composting Toilet Documents:
Separett Villa Extend US AC/DC Composting and Urine Diverting Toilet User Manual and Installation GuideSeparett Villa Extend Urine Diverting & Composting Toilet Installation Instructions
