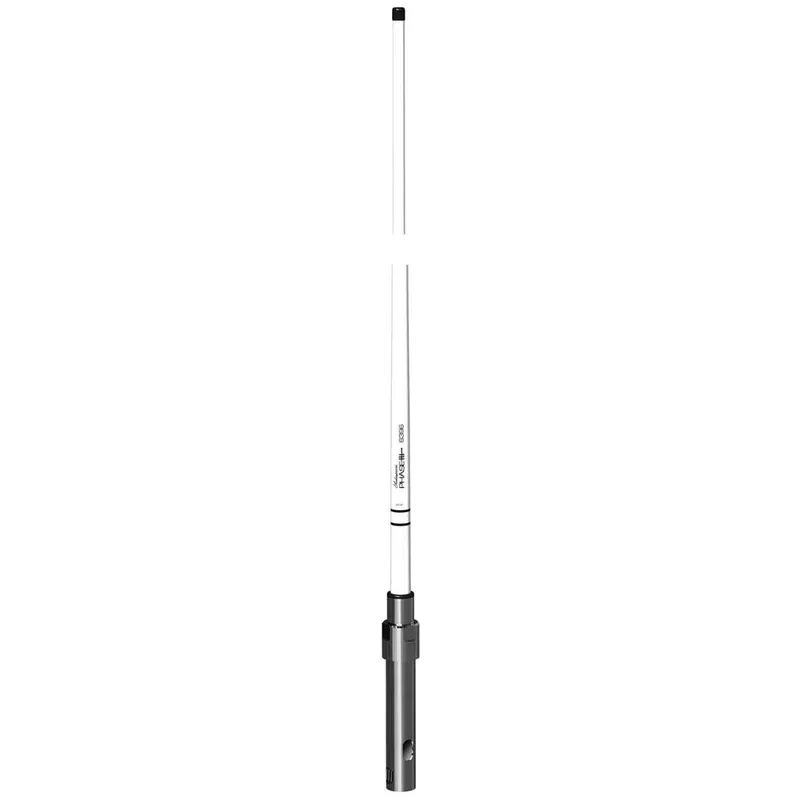

Shakespeare AIS 4ft Phase III Antenna — Product
Specially engineered and tuned to match AIS transceivers, this Phase III™ antenna enable reliable communication over marine AIS frequencies. Ethafoam spacers, thick radome, and silver-plated elements enhance the antenna’s technical performance and long
Shakespeare 6396AISR Attributes
- Bandwidth:5 Mega Hertz With 2.0:1 VSWR
- Color:White
- Compatibility:AIS Transceivers
- Connection Type:S0-239 Connector
- Gain:3 dB
- Length:4 Feet
- Material:Fiberglass
- Mounting Type:Ratchet Mount
- Power:50 Watt
Shakespeare 6396AISR Features & Benefits
- Silver-Plated Elements Provide Maximum Range, Clarity, And Efficiency
- Stainless Steel Mounting Sleeve Provides Greater Durability And Rust Prevention
- SO-239 Quick Connect Allows For Removal Or Installation Of The Antenna Without Twisting Or Reinstalling The Coax Cable
- 12-Sided Facet Indexes And Prevents The Antenna From Rotating During Installation
- Ethafoam Spacer System Isolates The Radiators From Vibration For Long, Dependable Service
- Thick Fiberglass Radome Finish Is A Durable High-Gloss, White Polyurethane Finish To Prevent Yellowing
- Limited 8 Year Warranty
PHASE III 6396-AIS-R 4′ AIS Antenna 3dB Gain
Specially engineered for the extra bandwidth required by AIS transceivers, this Phase IIIT antenna enables reliable communication over marine VHF frequencies.
- Silver-plated outer conductor, copper inner conductor
- Stainless steel mounting sleeve
- SO-239/PL-259 connector
Specifications
- Max. Power Input: 50 watts
- SWR: Less than 1.5:1 at 162 MHz
- Bandwidth: 5 MHz within 2.0:1 VSWR
- Frequency: VHF AIS Marine Band
- DC Grounding: Yes
- Pattern: Omnidirectional
- Polarization: Vertical
This Phase III antenna is specifically designed for the additional bandwidth required by AIS transceivers, enabling reliable communication on the marine VHF frequency. Insecticidal foam…
SKU: NVN-62623
MPN: 6396-AIS-R
UPC: 719441200688
