Boat part number 1066741 is a new smart GPS reciever from Si-Tex, model GPK-11 , part number GPS501A .
Constructed out of white marine grade plastic, this receiver measures approximately 3 7/8″ ODia. x 1 1/8″ H overall. This receiver adds unprecedented positioning accuracy to your existing electronics by utilizing advanced WAAS technology and best of all, it can be mounted virtually next to most other onboard electronics without signal interference. Will put your boat within 2 meters of your waypoint in most situations—great for revisiting fishing hotspots. Interfaces seamlessly with charting systems, track plotters, autopilots and other NMEA-0183 systems. Corrections are uplinked to satellites for complete U.S. coverage and out to 200 miles offshore. Ideal for inland boaters out of range of differential beacons. Fast and accurate, eliminating the need for a beacon receiver and antenna. All components housed in a single compact unit for convenient installation. Rugged, weatherproof construction.

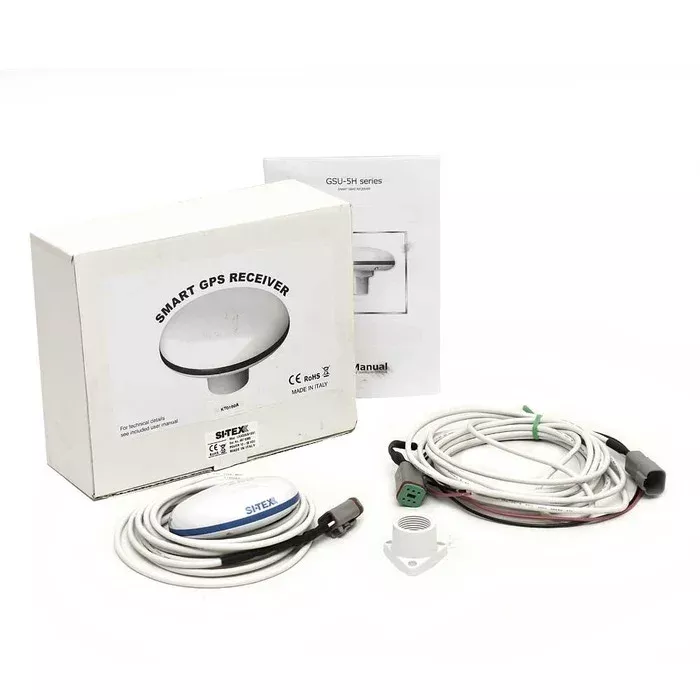

This kit includes:
- (1) Smart Receiver
- (1) Mounting Fitting | 1″ Threaded Inner Diameter
- (1) 4-Pin Male to 6-Pin Female Cable
- (3) 1/8″ Diameter Screws
- (3) 1/8″ Diameter Washers
Features:
- Delivers bettter than 2 meter accuracy
- Low Profile Housing, Pole or Flush mountable
- IP67
- Works with any Si-Tex Chartplotter
- Outputs NMEA-0183 GGA, RMC, GSA, GSV, TXT
- Inputs voltage 10v DC to 35v DC @0.8W
- Works with any Si-Tex unit and any unit requiring NMEA-0183 input of GPS
Specifications:
- Part Manufacturer: Si-Tex
- Model: GPK-11
- Part Number: GPS501A
- Material: Marine Plastic
- Color: White / Blue
- Finish: Glossy
- Electrical: 10-35VDC
- Overall Dimensions: 3 7/8″ ODia. x 1 1/8″ H
- Mount(s): (3) 1/8″ diameter threaded mounting holes
