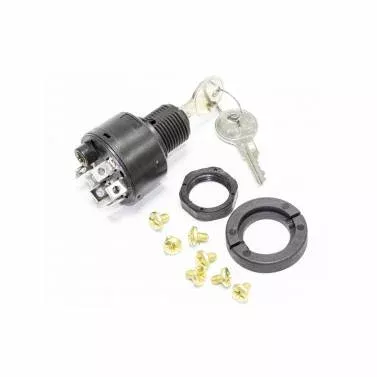

Sierra Marine Ignition Switch 4 Pos Mag. Part number MP41080.
Features
- Push to choke
- Maximum corrosion protection – eliminates oxidation
- Inner seal between cylinder lock and contact plate
- Non-conductive housing eliminates potential shorts
- Back Up Nut: Plastic
- Face Nut: Hex Black Plastic
- Hole Size: 7/8″
- Length: Short: 5/8″ maximum panel thickness
- Material: Marine grade glass-filled Polyester
- Rated Accessory: 15 Amp @ 12v DC
- Rated Choke: 7 Amp @ 12v DC
- Rated Ignition: 15 Amp @ 12v DC
- Rated Solenoid: 30 Amp @ 12v DC
- Terminal Type: 6 Screw Tab, 1 Boss Screw
- Switch Positions: Acc – Off – Run – Start
- Type: 4 Position Magneto
Part Number Cross Reference
- Seadog 420386-1
About Sierra
Sierra provides premium-quality aftermarket replacements for over 6,000 marine parts, tools, and components. Sierra products are engineered to meet or exceed OEM standards, and stand up in harsh marine environments. Every new Sierra part comes with a limited lifetime warranty that covers the useful life of the product against any defects in workmanship and materials.
