The
Simrad NAC-2 VRF Autopilot Core Pack (000-13337-001)
from
Nomadic Supply Company®
is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components, including heading sensors and rudder feedback units.The NAC-2 was designed for boats up to 10 metres (33 feet) in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (12 Amps peak).

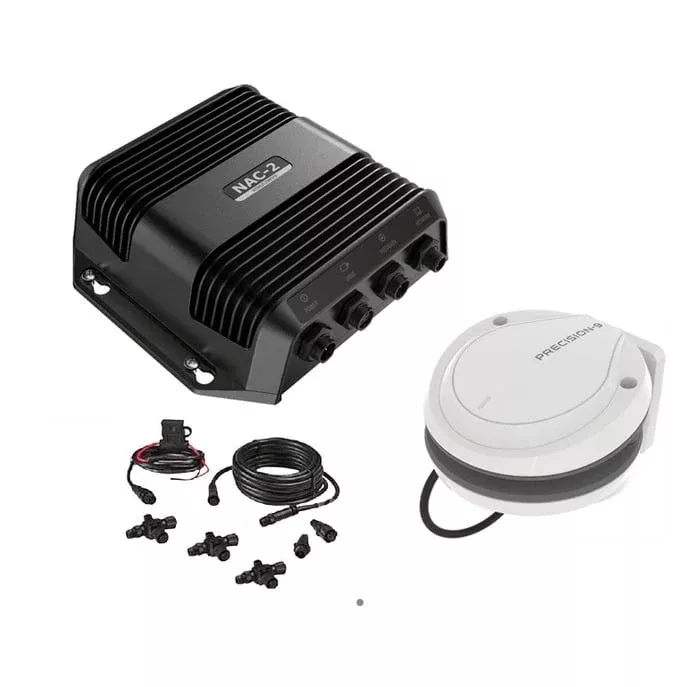

Simrad NAC-2 VRF Autopilot Core Pack (000-13337-001) Features:
- NAC-2 Autopilot Computer
- PRECISION-9 COMPASS
- N2k Backbone Starter Kit
Simrad NAC-2 VRF Autopilot Core Pack (000-13337-001) Specifications:
- Operating temperature: -25°C to +55°C (13°F to 131°F)
- protection: Splashproof, IPx5
- Electrical
Power supply: 9-31.2 V DC - Load: 140 mA + drive unit load
- Performance: Drive: 8 A cont., 16 A for 1 s
- Interfaces
network: 1xMicroC (NMEA2000) - Feedback: Variable voltage/resistive 0-5V
- Drive output: To PUMP-1 or HELM-1
- Solenoid: 12/24V DC, common, load range 10mA to 10A, off current <1mA
- Clutch: 12/24V DC, min 10mA, max 3A
