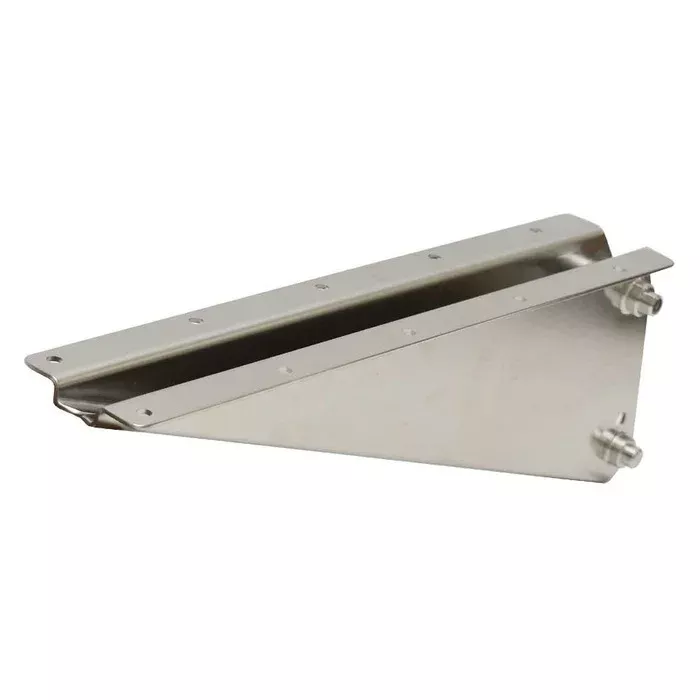

Boat part number 7600990 is a new swim platform support bracket from Skier’s Choice, part number 113120. Manufacturer unknown but the part number given is R-2402B.
This bracket is constructed out of polsihed stainless steel. It sits at a 103° angle with a 0″ offset when mounted and measures approximately 18 3/8″ L x 3″ W x 6 1/8″ H overall. Mounts with (2) 3/8″ Dia. holes and (10) 1/4″ Dia. holes set apart 3 1/2″ center to center on the 16 1/4″ L mounting plate.
Specifications:
- Boat Manufacturer: Skier’s Choice
- Part Number: 113120
- Part Manufacturer: Unavailable
- Part Number: R-2402B
- Material: Stainless Steel
- Color: Silver
- Finish: Polished
- Overall Dimensions: 18 3/8″ L x 3″ W x 6 1/8″ H
- Mounting Plate Length: 16 1/4″
- Angle: 103°
- Offset: 0″
- Mounts: (2) 3/8″ Dia. holes / (10) 1/4″ Dia. holes set apart 3 1/2″ CTC
