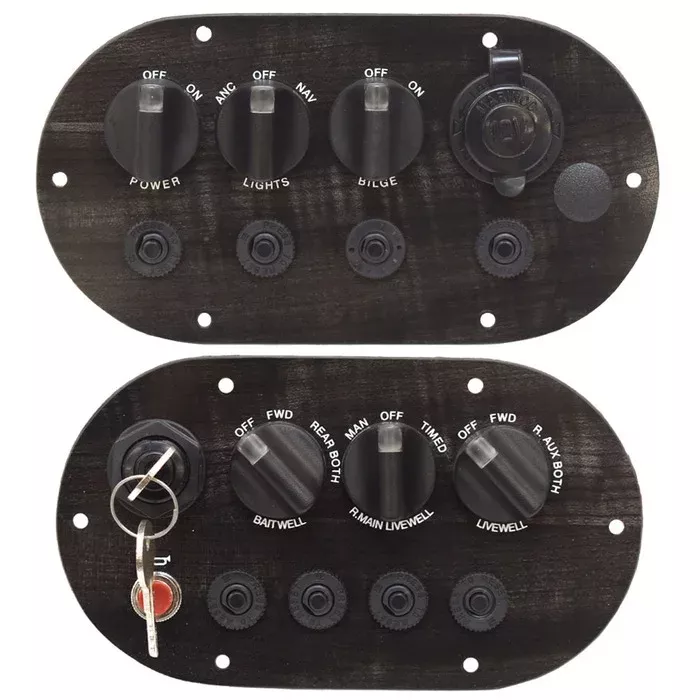

Boat part number 2001310 is a new set of 2 switch panels for Stratos Boats, part numbers 85022365 / 87021906 .
These switch panels are constructed out of charcoal gray faux woodgrain colored marine grade plastic. The ignition switch panel measures approximately 7 1/4″ W x 4 1/8″ H overall while the receptacle panel measures approximately 7 3/4″ W x 4 1/8″ H overall. Each panel features (6) 3/16″ Dia. mounting holes.
Ignition switch panel features the following:
- (1) OFF/RUN/START Ignition Switch w/ (2) Keys
- (1) Baitwell Rotary Switch | Illuminated | 4-Position
- (1) Main Livewell Rotary Switch | Illuminated | 3-Position
- (1) Livewell Rotary Switch | Illuminated | 4-Position
- (1) Horn Push Button Switch | Illuminated | Momentary ON/OFF
- (1) 10A Push-to-Reset Breaker
- (3) 5A Push-to-Reset Breaker
- (1) 12V 40A Relay
- (1) 3A Fuse
Has the following connections:
- (1) 2-pin male
- (1) 6-pin male
- (2) 3-pin male
- (1) 9-pin male
- (4) single pin female
- (4) single spade female
Receptacle panel features the following:
- (1) Power Rotary Switch | Illuminated | 2-Position
- (1) Bilge Rotary Switch | Illuminated | 2-Position
- (1) NAV/ANC Lights Rotary Switch | Illuminated | 3-Position
- (1) 12V Receptacle
- (1) 20A Push-to-Reset Breaker
- (2) 10A Push-to-Reset Breaker
- (1) 5A Push-to-Reset Breaker
Has the following connections:
- (1) 3-pin female
- (1) 9-pin female
- (1) 5-pin male
- (1) 9-pin male
Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.
Specifications:
- Boat Manufacturer: Stratos
- Model/Year: Unavailable
- Part Number: 85022365 / 87021906
- Material: Plastic
- Color: Charcoal Woodgrain
- Overall Dimensions: 7 1/4″ W x 4 1/8″ H / 7 3/4″ W x 4 1/8″ H
- Mounts: (6) 3/16″ Dia. mounting holes (per panel)
