Boat part number number 7500334 is a new switch panel set for a LX 322 model Suncatcher boat, part number 73422712 . Year unavailable. Can be used on other boats.

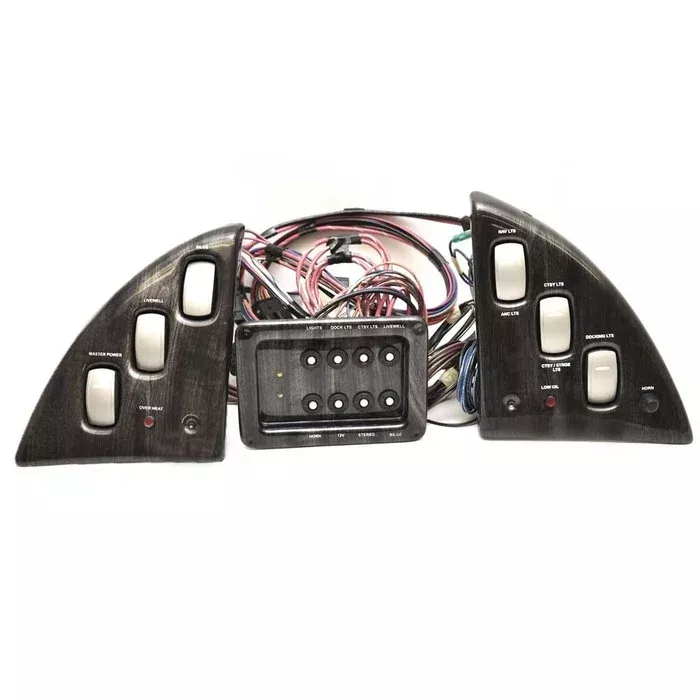

The panels are constructed our of marine grade plastic with a graywood pattern, this switch panel set includes (1) port side switch panel, (1) starboard side switch panel, and (1) breaker panel.
Switch Panels:
Each of these panels measure approximately 7 1/2″ L x 8 3/8″ H x 2 1/2″ D overall. Hosts (2) 3/16″ Dia. mounting holes set apart 7 3/4″ center to center.
The port panel features the following silver colored switches:
- On/Off “Master Power”
- On/Off “Livewell”
- On/Off “Bilge”
- “Over Heat” Red Indicator
The starboard panel features the following silver colored switches:
- On/Off/On “Nav Lights / Anc Lights”
- On/Off/On “Ctsy Lights / Ctsy Strge Lights”
- On/Off “Docking Lights”
- “Low Oil” Red Indicator
- Push Button Breaker “Horn”
Breaker Panel
The breaker panel measures approximately 6 3/8″ L x 4 5/8″ H x 3″ D overall.
The breaker panel features the following push to reset breakers:
- “Lights”
- “Dock Lights”
- “Ctsy Lights”
- “Livewell”
- “Horn”
- “12 V”
- “Stereo”
- “Bilge”
The connecting wiring harness hosts (1) 8-pin female, (1) 3-pin female, (1) 1-pin male, (5) spade female, and (5) raw wire lead connections.
Specifications:
- Boat Manufacturer: G3 / Suncatcher
- Model: LX 322
- Year: Unavailable
- Part Number: 73422712
- Material: Marine Grade Plastic
- Color: Graywood
- Connections: (1) 8-Pin Female | (1) 3-Pin Female | (1) 1-Pin Male | (5) Spade Female | (5) Raw Wire Lead
