Boat part number 7600535 is a new dash panel kit for a Gen2R3 Supra Boat, part number 118160 . Manufactured by BH Electronics, part number SC181K02510 .

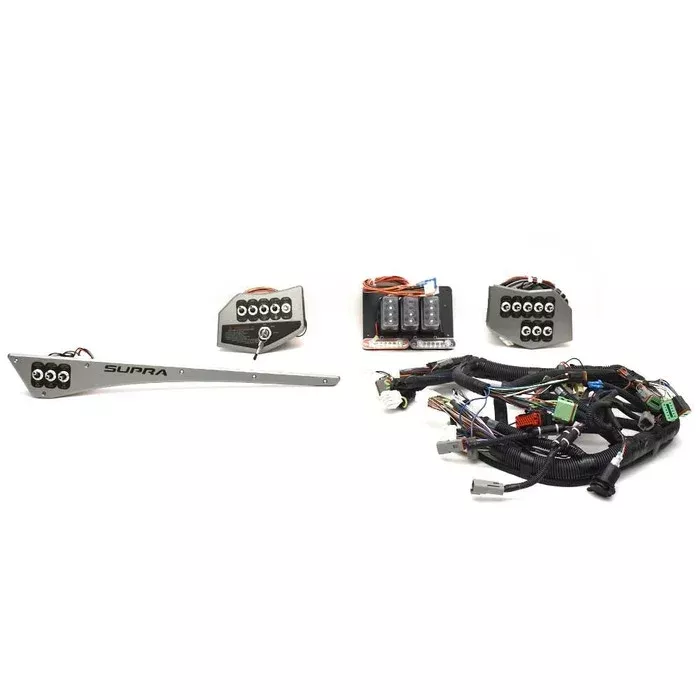

This kit includes the following:
- (1) Ignition Panel
- (1) Circuit Breaker
- (2) Toggle Switch Panels
Ignition Panel | PN: SC161P03420
This panel is constructed out of gray billet aluminum. It measures approximately 8 1/4″ L x 6″ H overall. Features a 3-position ignition with (2) keys, connects via (1) 11-pin female harness.
Features the following toggle switches:
- (2) On/Off | ACC
- (1) On/Off | Bilge
- (1) On/Off | Blower
- (1) Push Button | Horn
Toggle Switch Panel | PN: SC161P03418
This panel is constructed out of gray billet aluminum. It measures approximately 26″ L x 3 3/8″ H overall. Connects via (1) 8-pin female harness.
Features the following toggle switches:
- (1) On/Off | Left Ballast
- (1) On/Off | Front Ballast
- (1) On/Off | Right Ballast
Toggle Switch Panel | PN: SC161P03419
This panel is constructed out of gray billet aluminum. It measures approximately 8 1/2″ L x 6″ H overall. Connects via (1) 14-pin male harness, (1) 4-pin male deutsch, (1) 3-pin male deutsch, (1) 8-pin female deutsch connection.
Features the following toggle switches:
- (1) Momentary On/Off | Navigation / Anchor Lights
- (1) Momentary On/Off | Floor / Mid-Level Lights
- (1) Momentary On/Off | Dome / Storage Lights
- (1) Momentary On/Off | Tower / Docking Lights
- (1) Momentary On/Off | Steady / Strobe Lights
- (1) Momentary On/Off | High / Low Heater
- (1) Momentary On/Off | Up / Down Drivers Seat
- (1) On/Off | ACC
Breaker Panel | PN: SC171P03484
This panel is constructed out of black plastic. It measures approximately 8 3/8″ L x 6″ H overall. Connects via (1) 12-pin female harness
Features the following breakers:
- (1) 10 Amp: “Ignition”
- (1) 5 Amp: “Bilge”
- (1) 4 Amp: “Blower”
- (1) 3 Amp: “GPS/Ballast”
- (1) “ACC 5”
- (1) “ACC 6”
- (1) 15 Amp: “STBD 12V REC”
- (1) 6 Amp: “Port USB REC”
- (1) 10 Amp: “ACC 1”
- (1) 10 Amp: “ACC 2”
- (1) 5 Amp: “ACC 3”
- (1) 5 Amp: “ACC 4”
Harness | PN: SC181C01136
This harness measures approximately 4′ L overall. Please see photos for connections.
Please check with your local Supra dealer for boat / brand / model / year cross-referencing compatibilities.
Specifications:
- Boat Manufacturer: Supra Boats
- Part Number: 118160
- Model: Gen2R3
- Year: Unavailable
- Part Manufacturer: BH Electronics
- Part Number: SC181K02510
