Boat part number 1120100 is a new emergency stop panel from Suzuki, part number 37803-98L00. Commonly used on Blue Wave boats , but may be used on other boats.

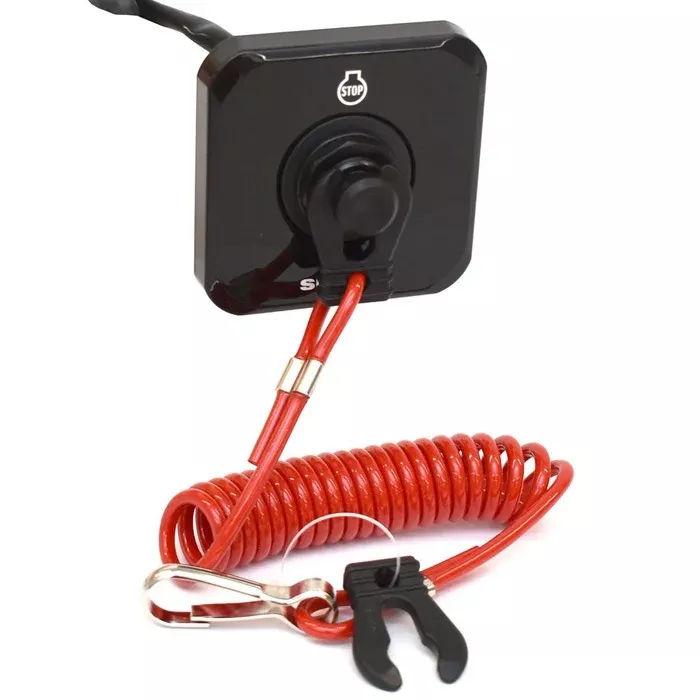

This panel is constructed out of glossy black plastic with white text on the face and a red lanyard. It measures approximately 2 1/2″ H x 2 1/2″ W overall and mounts in a 1 1/8″ Dia. cutout with (4) 3/16″ Dia. holes set apart 1 3/4″ center-to-center. Connects with a 2-pin receptacle.
Please check with your local Suzuki dealer for boat / brand / model / year cross-referencing compatibilities.
Specifications:
- Boat Manufacturer: Blue Wave boats
- Part Number: Unavailable
- Part Manufacturer: Suzuki
- Part Number: 37803-98L00
- Material: Plastic
- Color: Black
- Finish: Glossy
- Overall Dimensions: 2 1/2″ H x 2 1/2″ W
- Mounts: 1 1/8″ Dia. Cutout / (4) 3/16″ Dia. holes set apart 1 3/4″ CTC
- Connections: 2-Pin Receptacle
