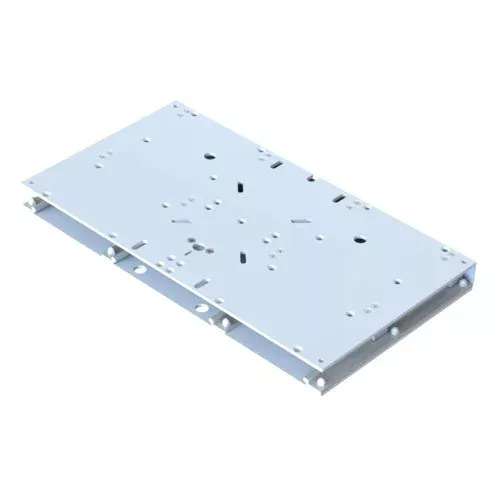

TACO 13-1/8″ x 24″ Electric Seat Slide [M20-2413E]

13-1/8″ x 24″ Electric Seat SlidePerfect for seats and benches 29″ to 40″ wide, this 13-1/8″ X 24″ electric seat slide travels up to 5″ and can be stopped anywhere between its fully extended and retracted positions. Contact your TACO Sales or Customer Service Representative for more information.Features:

• Ideal for seats 29″ to 40″
• Features 5″ of travel distance (stroke length)
• Water-resistant IP66 rating
• Meets H31 testing standards for seat applications
• Precision-machined 6000-series aluminum chassis
• Rail/Linear Glide systems are self-lubricating, dirt-resistant, quiet, corrosion-free, lightweight, and shock resistant
• Low profile with secure fit with universal mounting bolt pattern on both pedestal and box applications
• Quite an operation ≤ 58dB
• Electric actuator
• Self-locking at any given position (at rated loads)
• No racking in any direction due to precision tolerances in the track/glide system
• All electric seat slides and components are acid-etched clear anodized
• Made in the USA
• 3-year limited warranty

Specifications:

• 12V DC 9 AMP Max current
• Max load 3500N
• Push and pull force of 1500N
• IP66 Rated
• Speed 13.5 mm/Sec @ 1500N

This product may not be returned to the original point of purchase.Please contact the manufacturer directly with any issues or concerns.
