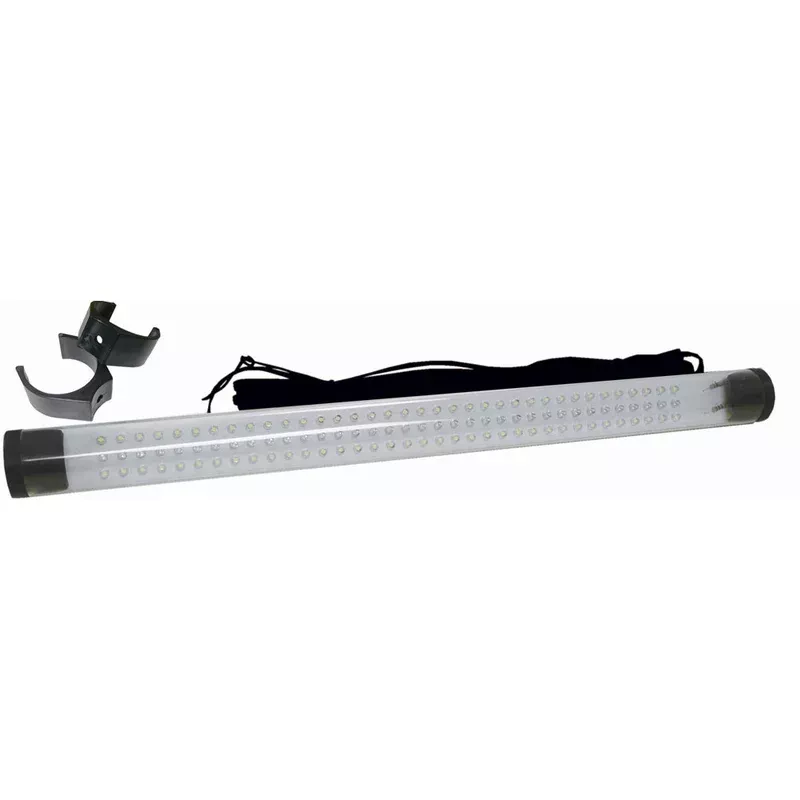

Taco Replacement T-Top Tube Light – White/Red LEDs — Product
Boaters love our T-top LED Tube Light! The bright white light and low glare red or blue light is ideal for chart reading. The long-lasting low-draw lumens won’t drain your battery and it’s impervious to water spray, wash-downs and pounding wake. This light is great for engine rooms, T-tops and arches, and its universal design fits most existing fluorescent T-top light housings.
Taco F382060R1 Attributes
- Bulb Type:LED
- Bulb Color:White/ Red
- Light Output:300 Lumens
- Dimensions:20 Inch Length X 1-5/8 Inch Height
- Lens Color:Clear
- Voltage Rating:12 Volt
- Ampere Rating:0.5 Amp
- Lens Material:Polycarbonate
- Housing Color:Black
- Mounting Type:Clip-On
- Submersible:No
- With Wiring Harness:Yes
- Quantity:Single
Taco F382060R1 Features & Benefits
- Impact-Resistant Polycarbonate Lens
- IP67-Waterproof Rating
- 14 Feet Of Wiring Cable
- 3 Way Switch On End Of Light, Toggles From Color, To White, To Off
- 300-Lumens Of White Light
- Low Draw Of Less Than .5 Amps
- Limited 1 Year Warranty
Taco F382060R1 Installation Instructions
- INSTRUC-F38-2050_2060 LED Lights V1.pdf
Taco F382060R1 Warranties
- Warranty Terms_Conditions V4.pdf
Taco F382060R1 Technical Bulletins
- 2022 TACO Marine T-Top Tube Lights Spec Sheet V4.pdf
Replacement T-Top Tube Light – White/Red LEDs
LED Lights – Hard Wired
- High output, low glare
- Vibration & shock-resistant LEDs
- Less than 1/4 amp draw won’t drain battery
- Impact-resistant & water resistant ideal for marine & other outdoor uses
Tube Light
- 108 LEDs provide high output, low glare light
- Switch from white light to red light for chart-reading
- Impact-resistant Polycarbonate lens
- Light tube & connection sealed for water resistance
- Mounting clips included for easy installations
- Ideal for use on engine rooms, T-tops and arches
- Universal design for use as replacement light for existing standard T-top light housings
Fluorescent lamp with a large number of 18′ connection cables. The bright white color is great for chart reading. Please refer to the Details tab for more information.
SKU: NVN-56396
MPN: F38-2060R-1
UPC: 630838084158
