Boat part number 1078694 is a new diesel tachometer gauge from Teleflex Marine, part number 62865 . Commonly used on Rinker Boats, but can be used on other boats.

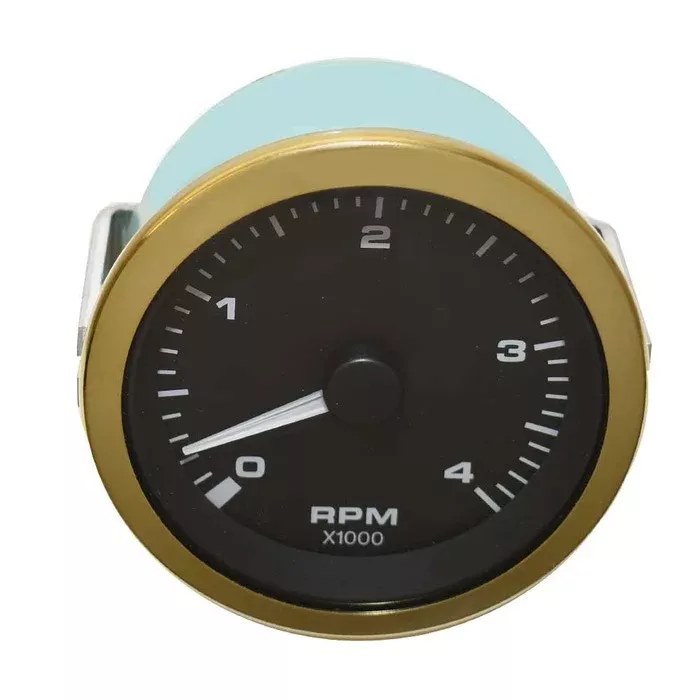

Part of the Premier Pro Gold series, this clear halogen illuminated gauge features a domed lens, black face, gold colored bezel, white lettering, numerals and accents, with a white needle.
Measures approximately 3 3/4″ diameter across the face x 3 3/8″ deep overall. Requires an approximate 3 3/8″ diameter cutout. Hosts (3) threaded bolt connections labeled “Ign”, “Gnd”, and “Send”. Mounting bracket included.
Set up for 90-180 teeth diesel engines.
Sold as a single.
Specifications:
- Boat Manufacturer: Rinker Boats
- Year / Model: Unavailable
- Part Manufacturer: Teleflex Marine
- Part Number: 62865
- Series: Premier Pro Gold
- Colors: Black (Face) | Gold
- Overall Dimensions: 3 3/4″ Dia. x 3 3/8″ D
- Cutout: 3 3/8″ Dia.
- Connections: (3) Threaded Bolt
- Set up for 90-180 Teeth Diesel Engines
