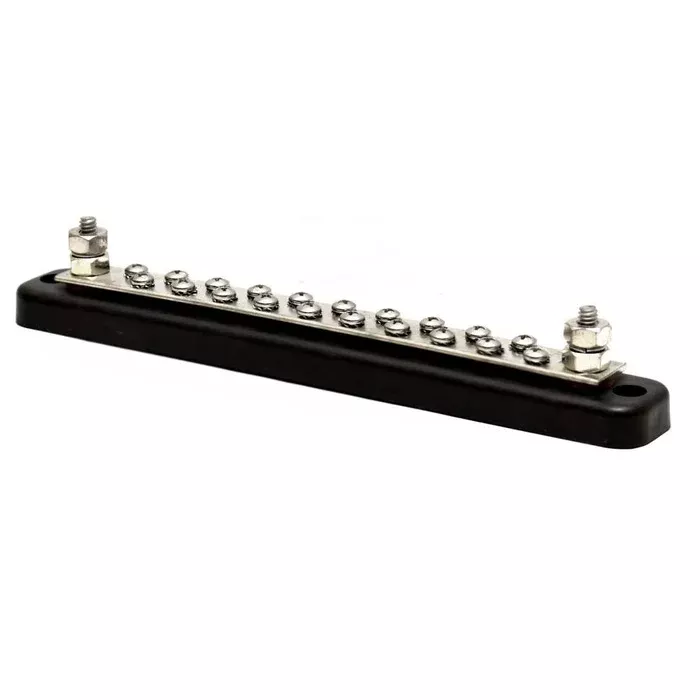

Boat part number 1082215 is a new 150 Amp, 20 Gang BusBar terminal from MGSwitches, part number FS40762 . Commonly used on Tiara Yachts, part number 3249360 , but may be used on other boats.
This BusBar is for the collection of negative or AC ground circuits. It is constructed out of a reinforced polycarbonate base, with tin plated electrical copper bus terminals, and stainless steel threaded studs for maximum conductivity. Measures approximately 9 1/8″ L x 1 1/4″ W overall, and mounts with (2) 1/4″ Dia. countersunk mounting holes approximately 8 1/4″ apart center to center. Has (20) 8-32 screw terminals, and (2) 1/4″ threaded terminal studs.
Electrical:
- Max Voltage: 300 VAC, 48 VDC
- Continuous Rating: 130 A AC, 150 A DC
- (20) 8-32 Screw Terminals
- (2) 1/4″ Threaded Terminal Studs
Specifications:
- Boat Manufacturer: Tiara Yachts
- Part Number: 3249360
- Part Manufacturer: MGSwitches
- Part Number: FS40762
- Materials: Polycarbonate / Tin Plated Copper
- Color: Charcoal Gray / Silver
- Overall Dimensions: 9 1/8″ L x 1 1/4″ W
- Mounts: (2) 1/4″ Dia. Countersunk Holes
