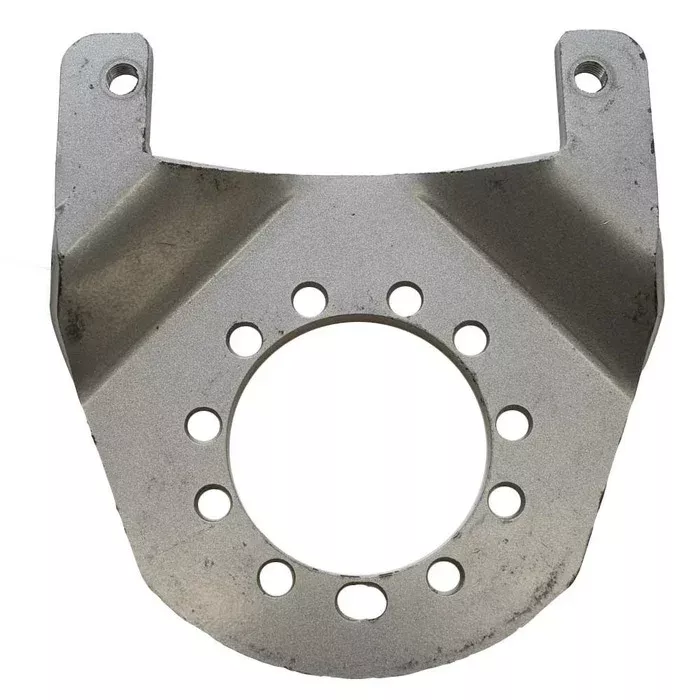

Boat part number 7103189 is a new mounting bracket for 12″ Galv-X integral and cap over style rotors from Tie Down Engineering, part number 44478 . Commonly used on Ranger Boats, part number 204015 , but may be used on other boats.
This brake mounting bracket is constructed out of 1/4″ thick coated steel and measures approximately 8 1/8″ H x 7 5/8″ W overall. Mounts with (2) 7/16″-20 threaded holes spaced 5 3/4″ apart, center to center.
Manufacturer features:
- Galvanized finish to help protect from corrosion
- Fits on 5-hole axle flange
- Designed for either integral hub/rotors or cap over style
- Not to be used with Tie Down “G5” series rotors
May contain minor scratches from handling and storage. See photo for example.
Specifications:
- Boat Manufacturer: Ranger Boats
- Part Number: 201015
- Part Manufacturer: Tie Down Engineering
- Part Number: 44478
- Material: Steel
- Color: Silver
- Finish: Coated
- Overall Dimensions: 8 1/8″ H x 7 5/8″ W
- Flange Mounting Pattern: 5-bolt
- Axle Capacity: 6,000 lbs.
- Mounts: (2) 7/16″-20 Threaded Holes
