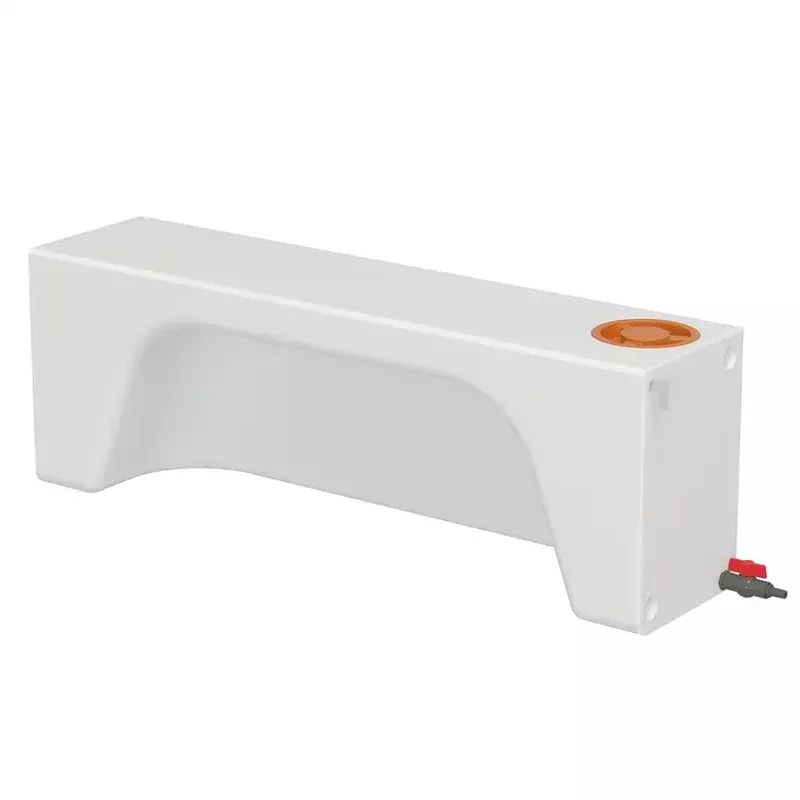

The TORVA Ford Transit & Mercedes Sprinter 20-Gallon Wheel Well Water Tank (RV-WT075) from Nomadic Supply Company® is specifically designed for Mercedes-Benz Sprinter 2500 and Ford Transit camper vans & RVs. Our TORVA Ford Transit & Mercedes Sprinter 20-Gallon Wheel Well Water Tank (RV-WT075) is made from high-quality LLDPE to meet all food safety standards. Designed to fit over the wheel well arch, our 20-Gallon Wheel Well Water Tank (RV-WT075) maximizes interior space efficiency. The tank comes equipped with a complete set of fittings and control valves for easy installation and operation.Utilize the wasted space around your camper van rear wheel wells to add fresh water storage with our TORVA Ford Transit & Mercedes Sprinter 20-Gallon Wheel Well Water Tank (RV-WT075). The TORVA Ford Transit & Mercedes Sprinter 20-Gallon Wheel Well Water Tank (RV-WT075) is designed to fit Sprinter 2500 and Ford Transit single rear wheel vans, fitting against the wall and around the interior rear wheel wells.
TORVA Ford Transit & Mercedes Sprinter 20-Gallon Wheel Well Water Tank (RV-WT075) Features:
High-Capacity Design
With a generous 20-gallon (125-liter) capacity, our TORVA Ford Transit & Mercedes Sprinter 20-Gallon Wheel Well Water Tank (RV-WT075) is perfect for long trips and outdoor adventures, providing ample water supply.Space-Optimized Design
Specifically designed to mount over the wheel arch, our TORVA Ford Transit & Mercedes Sprinter 20-Gallon Wheel Well Water Tank (RV-WT075) saves interior space effectively, making the interior more spacious and comfortable.Comprehensive Fitting Package
The TORVA Ford Transit & Mercedes Sprinter 20-Gallon Wheel Well Water Tank (RV-WT075) comes with fittings and control valves, making installation quick and easy.Safety and Durability
Our TORVA Ford Transit & Mercedes Sprinter 20-Gallon Wheel Well Water Tank (RV-WT075) is made from LLDPE material, BPA-free, and compliant with FDA food safety standards, ensuring water safety and high durability.
TORVA Ford Transit & Mercedes Sprinter 20-Gallon Wheel Well Water Tank (RV-WT075) Specifications:
- SKU: RV-WT075
- Capacity: 20 gallon/75 liters
- Material: LLDPE
- Product Dimensions: 47” x 11” x 16” / L119*W28*H40.5cm
- Packaging Dimensions: 48” x 11.8” x 16.9” / L122*W30*H43cm
- Compatible Models: Sprinter 2500 & Ford Transit single rear wheel
- Net Weight: 9.5kg / 20.94lbs
- Gross Weight: 11kg / 24.25lbs
TORVA Ford Transit & Mercedes Sprinter 20-Gallon Wheel Well Water Tank (RV-WT075) Plumbing Fittings:
- Fittings: 2 x 1/2″ NPT fittings on both ends of the tank, 1 x 1-1/2″ NPT fitting at one end of the tank, 2 on the other, and 1 on top
TORVA Ford Transit & Mercedes Sprinter 20-Gallon Wheel Well Water Tank (RV-WT075) Includes:
1.Threaded connector 1/2 x 1/2NPT (M)
2.Valve 1/2 x 1/2NPT (F)
3.Water outlet pipe connector 1/2″
4.Vent pipe connector 1/2″
M: Refers to external thread Male, F: Refers to internal thread Female
TORVA Ford Transit & Mercedes Sprinter 20-Gallon Wheel Well Water Tank (RV-WT075) Precautions:
- Do not pressurize the tank. Do not hang the tank by straps or place weight on the tank
- Must be vented
- Flush the tank before installation to ensure that no plastic debris from production remains
- Do not over-tighten fittings, as damage will occur
- Fittings are sealed, please make your own holes as required
- The product may bulge slightly due to water pressure
TORVA Ford Transit & Mercedes Sprinter 20-Gallon Wheel Well Water Tank (RV-WT075) Compatibility:
Mercedes-Benz Sprinter:
- First Generation (T1N) 2002-2006
- Third Generation (VS30) 2019+
- Second Generation (NCV3) 2008-2018
Ford Transit:
- Fifth Generation: 2015+
- Ford Transit van wheel wells are slightly smaller than the Sprinter so there is more room for insulation around the wheel wells.
How to Clean Our Camper Van Water Tanks:
Make sure you rinse the water tank before first use, as there can be plastic bits left in the tank from the manufacturing process.Nomadic Supply Company recommends using ourLippert Floë Compressed Air Camper Van Fresh Water Flushing Systemthroughout the year to keep your water system completely pristine. In addition to flushing your water system you can also use bleach or vinegar to clean our fresh water tanks, or you can one of ourcamper van fresh water tank cleaning solutions. To clean your tank with bleach or vinegar follow the instructions below.Step 1: Drain the water tank completelyStep 2: Mix 4 oz bleach or vinegar with 1 1⁄2 gallons of hot waterStep 3: Pour bleach/vinegar solution into tankStep 4: Fill tank with fresh water until its fullStep 5: Let sit for 12 hoursStep 6: Drain the water tank completely, refill with fresh water and drain completely again (you may need to repeat this rinse step a few times)
Camper Van Water Tank Venting:
Polyethylene camper van water tanks must be vented. These fresh water tanks are not designed to handle pressure or a vacuum. A vent is necessary because as the tank is filled or emptied of its liquid an equal proportion of air must be displaced simultaneously. Discharge of a water tank without a vent would cause a vacuum to occur. A generally accepted rule concerning vent size is that it should be the same size as the tank’s largest outlet.
TORVA Ford Transit & Mercedes Sprinter 20-Gallon Wheel Well Water Tank (RV-WT075) Documents:
TORVA Ford Transit & Mercedes Sprinter 20-Gallon Wheel Well Water Tank (RV-WT075) Dimensional DrawingTORVA Ford Transit & Mercedes Sprinter 20-Gallon Wheel Well Water Tank (RV-WT075) Owner’s Manual
