Boat part number 1114908 is a new dash panel shroud kit from Tracker Boats, part number 315397 . Model and year unavailable.

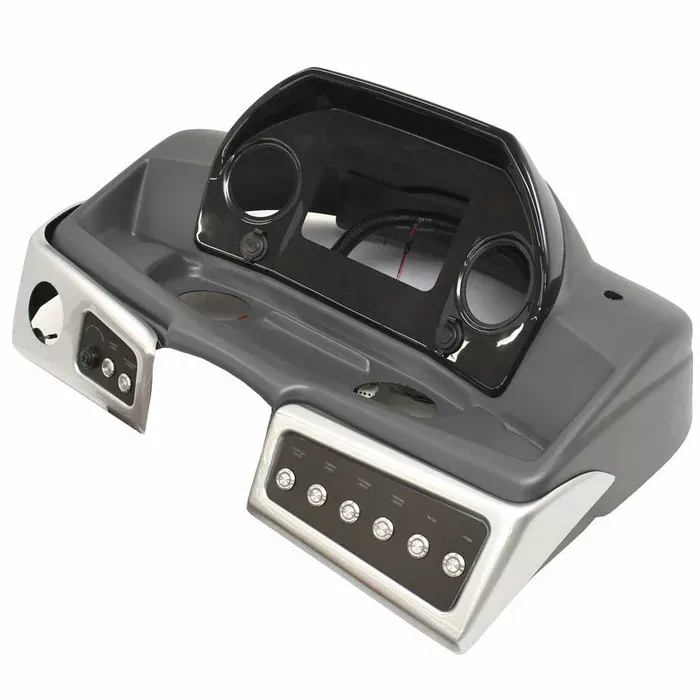

Blank Dash Shroud
This dash shroud is constructed from charcoal gray marine grade plastic with a black gauge shroud. Measures approximately 30″ W x 14″ H x 24″ D overall.
Hosts (2) 3 3/8″ Dia. gauge cutouts, (2) 3 5/8″ Dia. cup holder cutouts, and (1) 8″ W x 5″ H display cutout. Features (2) 12V receptacles and mounts with (5) 8-32 threaded bolts.
Hosts the following connections:
- (1) 3-pin female
- (1) 16-spade female
- (1) 9-pin female
- (1) 12-pin male
- (2) spade female
- (2) bullet wire leads
- (1) 9-pin male
Ignition Switch Panel
This ignition panel is constructed from brushed silver plastic with a brushed finish and black accent. It has (1) 2″ Dia. blank cutout and mounts with (4) 8-32 threaded bolts.
This panel features the following:
- (1) 4-Position Ignition Switch w/ (2) keys and kill switch lanyard | Acc/Off/Run/Start | Push to Choke
- (1) Illuminated Push Button: On/Off “Master Power”
- (1) Illuminated Push Button: On/Of “Power Steering Override”
Switch Panel
This switch panel is constructed from brushed silver plastic with a brushed finish and black accents Mounts with (4) 8-32 threaded bolts.
This panel features the following pre-installed switches:
- (1) Illuminated Push Button: On/Off “Courtesy Lights”
- (1) Illuminated Push Button: On/Off “Canopy Lights”
- (1) Illuminated Push Button: On/Off “Docking Lights”
- (1) Illuminated Push Button: Momentary On/Off “Nav/Anc Lights”
- (1) Illuminated Push Button: On/Off “Horn”
- (1) Illuminated Push Button: Momentary On/Off “Horn”
Fuse Panel
This fuse panel is constructed from black starboard and measures approximately 26″ L x 7 1/2″ H overall.
This panel features the following:
- (1) 12-Position Fuse Block with Plastic Cover
- (1) Stud Terminal “Power”
- (1) Stud Terminal “Ground”
- (1) USB 5 Amp Fuse
- (1) Master Power Relay
- (1) Stereo Memory 10 Amp Fuse
Note: Switch panels are not connected to the shroud.
Specifications:
- Boat Manufacturer: Tracker
- Model/Year: Unavailable
- Part Number: 315397
- Materials: Marine Plastic | Starboard (Fuse Panel)
- Colors: Black | Charcoal Gray | Silver (Switch Panels)
- Overall Dimensions: 30″ W x 14″ H x 24″ D
