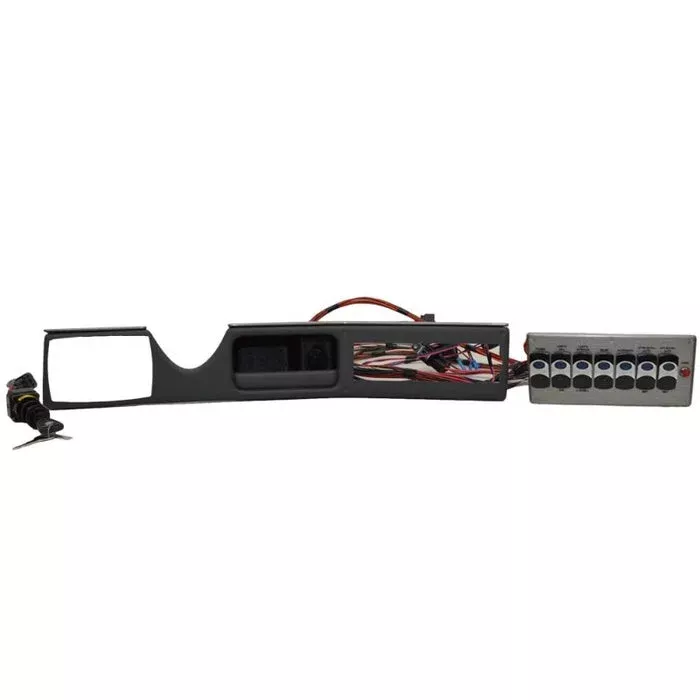

Boat part number 8103056 is a new OEM Mercury engine switch panel from Tracker Marine, part number unavailable.
This panel is constructed out black colored marine grade plastic wrapped in gray colored vinyl overlay with a textured finish. The panel measures approximately 25 3/4″ L x 4 1/4″ H overall.
Note: Panel comes with a Mercury key switch assembly – part number 87 893353A02.
Manufacturer Tag Reads: Brunswick TM J80763-14 F3582120619.
Cutouts:
- (1) 5 1/2″ W x 3 1/2″ H – Cutout
- (1) 8 1/8″ W x 2″ H – Cutout
- (1) 5 7/8″ W x 2″ H – Slotted Cutout With (1) 12V Receptical Port
The Switch Panel Measures Approximately 9″ W x 3 3/4″ H overall.
This Panel Includes The Following Rocker Switches:
- (1) On/Off Illuminated – Power Rocker Switch
- (1) On/Off/On Illuminated – NAV/ANC Lights Rocker Switch
- (1) On/Off/On Illuminated – Livewell Interior Lights Rocker Switch – W/ Timer
- (1) On/Off Illuminated – Bilge Rocker Switch
- (1) On/Off Illuminated – Accessory Rocker Switch
- (1) On/Off/On Illuminated – AFT/Bow Fill Auto/Main Rocker Switch
- (1) On/Off/On Illuminated – AFT/Recirculation Rocker Switch
- (1) Horn – Push-Button
Connection:
- (4) Single Female Connectors
- (1) 2-PIn Female Connector
- (1) 5-Pin Female Connector
- (2) 7-Pin Frmale Connector
- (1) 5-Spade Connector
- (1) 6-Spade Connector
Specifications:
- Boat Manfacturer: Tracker
- Part Number: Unavailable
- Material: Plastic
- Color: Gray
- Finish: Textured
- Overall Dimensions: 25 3/4″ L x 4 1/4″ H
