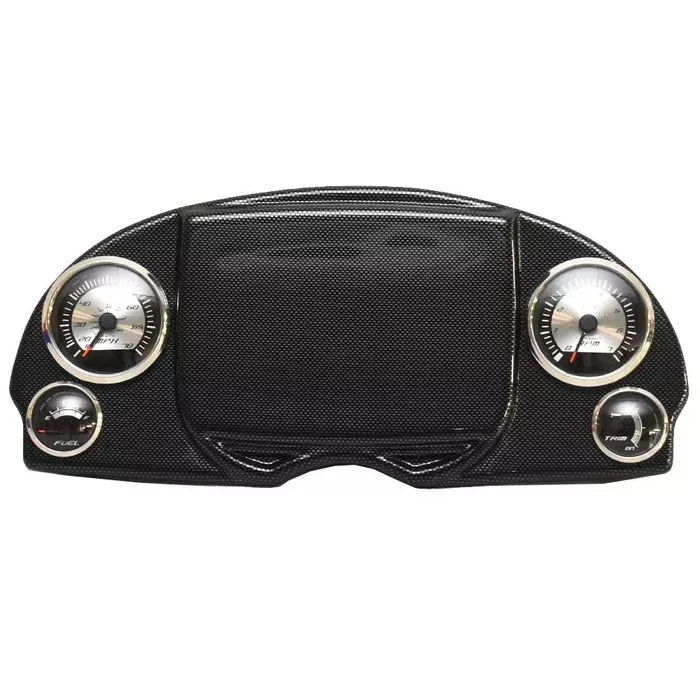

Boat part number 7103240 is a new gauge dash panel for X18 Triton Boats, part number 173302 . Manufactured by BH Electronics, part number TA151P23300 .
This dash panel is constructed out of black and silver colored, carbon fiber patterned plastic with a glossy finish. It measures approximately 20″ L x 8 7/8″ H overall.
This panel has (4) pre-installed halogen illuminated Faria gauges that features domed lenses, silver colored bezels, black/silver colored faces, transparent orange tipped black needles, with black/white graphics.
This panel features the following gauges:
- (1) Tachometer | P/N: TC8508A | Gasoline | 4/6/8/10/12 Cycles / 1/2/3/4/5 Poles
- (1) Speedometer | P/N: SE9851A | (1) Pitot Style Connection
- (1) Fuel | P/N: GP7879A | Ohms: Empty (240 Ohms) / Mid (103 Ohms) / Full (33.5 Ohms)
- (1) Trim | P/N: GP7881A | Set Up For: Mercury Engines
Has the following connections:
- (1) 3-pin male Deutsch
- (1) 4-pin male Deutsch
Specifications:
- Boat Manufacturer: Triton Boats
- Model: X18
- Year: Unavailable
- Part Number: 173302
- Part Manufacturer: BH Electronics
- Part Number: TA151P23300
- Material: Plastic
- Color: Black / Silver
- Pattern: Carbon Fiber
- Finish: Glossy
- Overall Dimensions: 20″ L x 8 7/8″ H
- Mounts: (6) 1/8″ Dia. Holes
- Set Up For: Mercury Engines
