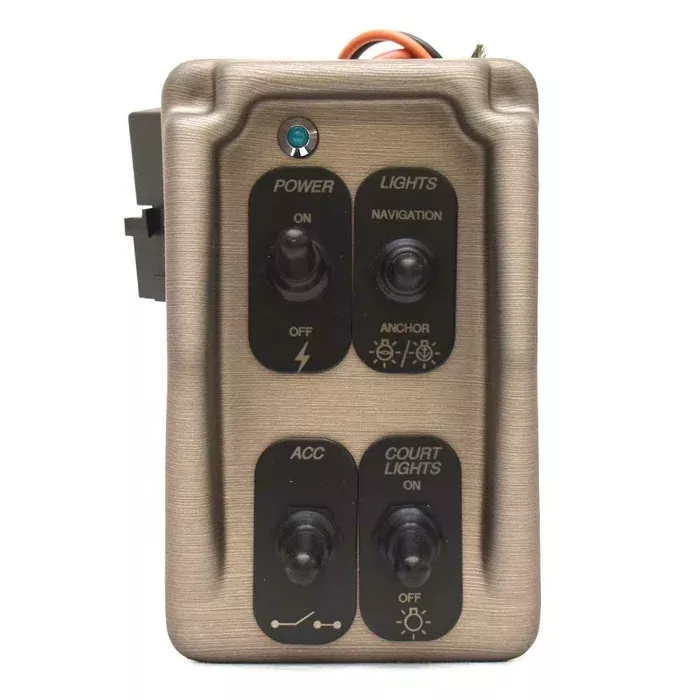

Boat part number 7104021 is a new switch panel for 210 Pro model Triton Boats, part number 334096 . Manufactured by BH Electronics, part number TR181P03681 .
This switch panel is constructed out of bronze colored plastic with a brushed finish. It measures approximately 5 7/8″ L x 3 5/8″ W overall. It connects via (1) 6-pin female Deutsch, (1) 4-pin female Deutsch, (1) 2-pin male Deutsch, (2) female bullets, (2) female crimps, (2) raw wire leads.
Features the following black booted toggle switches:
- (1) Power | ON/OFF (Blue Indicator Light)
- (1) Lights Navigation/Anchor | ON/OFF/ON
- (1) ACC | ON/OFF/ON
- (1) Court Lights | ON/OFF
Specifications:
- Boat Manufacturer: Triton Boats
- Model: 210 Pro
- Part Number: 334096
- Part Manufacturer: BH Electronics
- Part Number: TR181P03681
- Material: Plastic
- Color: Bronze
- Finish: Brushed
- Overall Dimensions: 5 7/8″ L x 3 5/8″ W
- Connections: (1) 6-Pin Female Deutsch / (1) 4-Pin Female Deutsch / (1) 2-Pin Male Deutsch / (2) Female Bullets / (2) Female Crimps / (2) Raw Wire Leads
