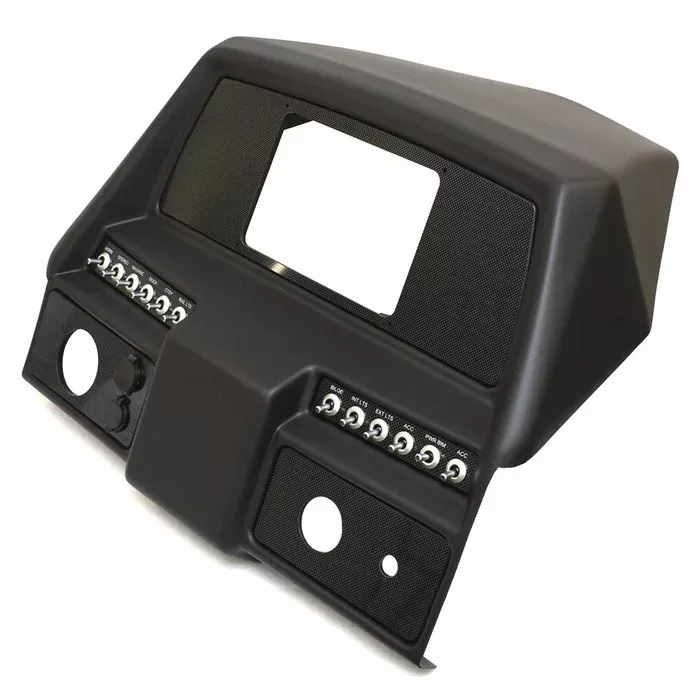

Boat part number 1116529 is a new helm dash shroud with a breaker panel for Diamante model Viaggio pontoons, part number 201558. Manufacturer unavailable, but the part number given is 503309FFI.
This dash shroud is constructed out of plastic with black vinyl over it and checkered accent panels. It measures approximately 18 1/4″ H x 27″ W x 23″ D overall. Includes (12) pre marked lit-tip toggle switches, (1) 12V Receptacle, and (1) USB receptacle W/ voltmeter.
Features the following cutouts:
- (1) 9″ W x 6″ H
- (1) 3″ Dia.
- (1) 2 1/8″ Dia.
- (1) 3/4″ Dia.
See photos for connections and breaker panel layout.
Specifications:
- Boat Manufacturer: Viaggio
- Model(s): Diamante Series
- Part Number: 201558
- Part Manufacturer: Unavailable
- Part Number: 503309FFI
- Material: Vinyl / Plastic
- Color: Black
- Finish: Matte
- Overall Dimensions: 18 1/4″ H x 27″ W x 23″ D
