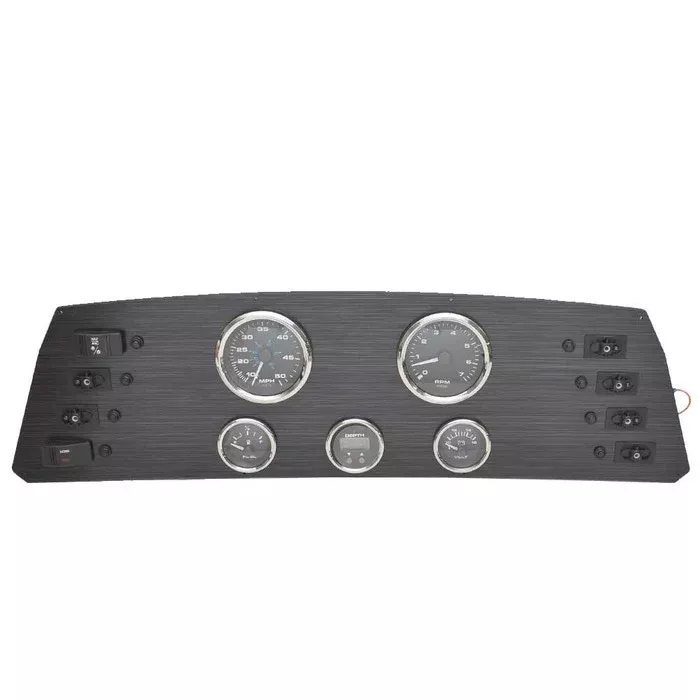

Boat part number 1116500 is a new dash panel with gauges for Lago model Viaggio Pontoon Boats, part number 206308 . Manufactured by IMP, part number 503077 .
This dash panel is constructed out of brushed black plastic with a satin gloss finish. It measures approximately 28 1/4″ W x 8″ H overall.
This panel has (5) pre-installed Black Premier gauges from Veethree. Each clear halogen illuminated gauge has a domed lens, stainless steel bezel, black face, white needle, and white graphics. They feature red backlighting and the depth finder is digital.
This panel features the following gauges:
- Speedometer | P/N: 65639SEF | pitot connection
- Tachometer | P/N: 84293SEF | Gasoline | 4/6/8 cylinder and 2/3/4/5/6 pole
- Fuel Level | P/N: 65632SEF | 33.5 – 240 ohms
- Depth Meter | P/N: 76402
- Volt Meter | P/N: 65665SEF
This panel features the following pre-installed illuminated rocker switches:
- Navigation/Anchor Lights | On/Off/On
- Horn (Non-Illuminated) | Momentary On/Off
- (5) No Cover/Actuator | On/Off
- (1) No Cover/Actuator | Momentary On/Off/Momentary On
This panel also includes the following:
- (8) Push-to-Reset Breaker Switches
Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.
Note: There are (6) rocker switches that do not include a cover/actuator.
Specifications:
- Boat Manufacturer: Viaggio Pontoons
- Model: Lago
- Part Number: 206308
- Part Manufacturer: IMP
- Part Number: 503077
- Material: Plastic
- Color: Brushed Black
- Finish: Satin Gloss
- Overall Dimensions: 28 1/4″ W x 8″ H
- Fuel: Gasoline
- Set Up For: 4/6/8 cylinder and 2/3/4/5/6 pole
