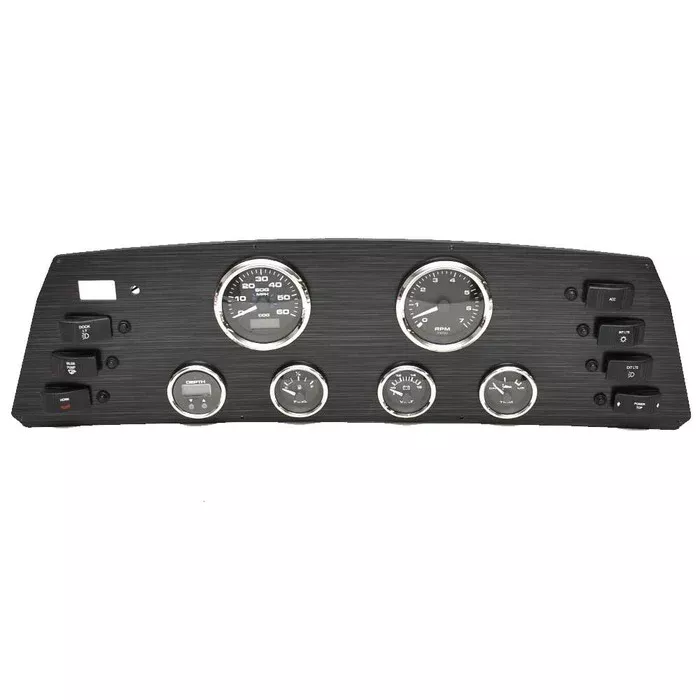

Boat part number 1116402 new dash panel with gauges for Lago model Viaggio Pontoon Boats, part number 206318 . Manufactured by IMP, part number 503094 .
This dash panel is constructed out of brushed black plastic with a satin gloss finish. It measures approximately 28 1/4″ W x 8 1/8″ H overall.
This panel has (6) pre-installed Black Premier gauges from Veethree. Each clear halogen illuminated gauge has a domed lens, stainless steel bezel, black face, white needle, and white graphics. They feature red backlighting, the GPS speedometer has an LCD heading display, and the depth finder is digital.
This panel features the following gauges:
- GPS Speedometer | P/N: 781636PDFB
- Tachometer | P/N: 84293SEF | Gasoline | 4/6/8 cylinder and 2/3/4/5/6 pole
- Digital Depth Finder | P/N: 67402 | 2.5 – 200 FT
- Fuel Level | P/N: 65632SEF | 33.5 – 240 ohms
- Volt Meter | P/N: 65665SEF
- Trim | P/N: 65663SEF | Honda engines
This panel features the following pre-installed red illuminated rocker switches:
- Dock Lights | On/Off
- Bilge Pump | On/Off
- Horn | Momentary On/Off
- Accessory | On/Off
- Interior Lights | On/Off
- Exterior Lights | On/Off
- Power Top Up/Down | Momentary On/Off/Momentary On
This panel also includes the following:
- 1 1/2″ W x 7/8″ H Switch Cutout
- 3/8″ Dia. Breaker Cutout
- (7) Push-to-Reset Breaker Switches
Note: Please check with your local boat brand dealer for boat / brand / model / year cross-referencing compatibilities.
Specifications:
- Boat Manufacturer: Viaggio
- Model: Lago
- Part Number: 206318
- Part Manufacturer: IMP
- Part Number: 503094
- Material: Plastic
- Color: Brushed Black
- Finish: Satin Gloss
- Overall Dimensions: 28 1/4″ W x 8 1/8″ H
- Fuel: Gasoline
- Set Up For: 4/6/8 cylinder and 2/3/4/5/6 pole
- Used on These Engines: Honda
