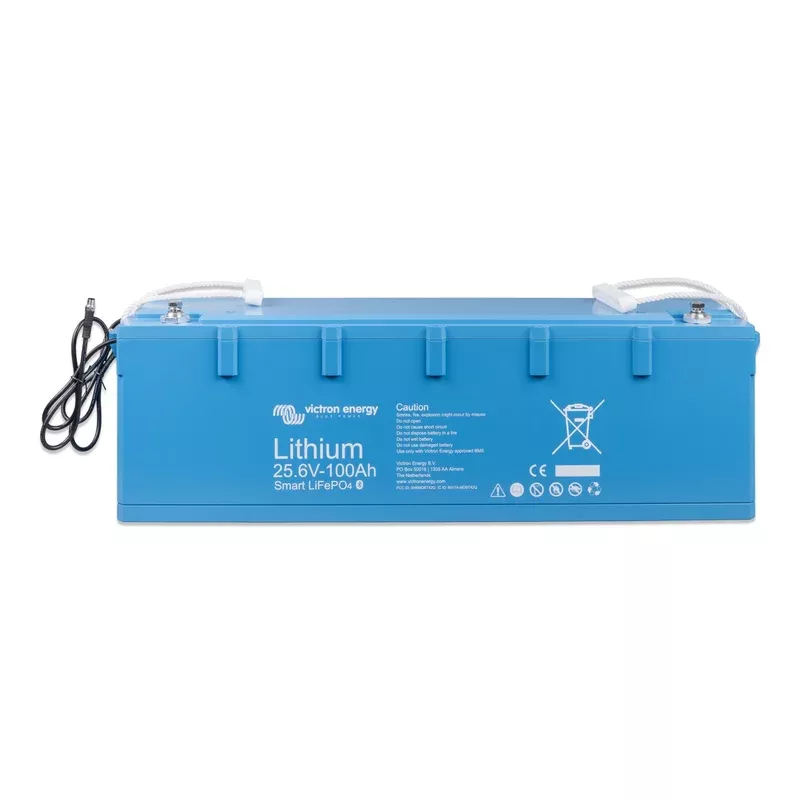

The Victron Energy LiFePO4 Battery 25.6V/100Ah Smart (BAT524110610) from Nomadic Supply Company® is powerful 25.6V 100Ah LiFePO4 Smart battery with integrated monitoring and cell balancing for 24V systems. This advanced lithium battery combines exceptional capacity with intelligent management for large-scale marine, solar, and renewable energy applications.
Victron Energy LiFePO4 Battery 25.6V/100Ah Smart (BAT524110610) Features:
- LiFePO4 lithium chemistry for superior energy density
- Integrated cell balancing and cell monitoring systems
- Built-in Bluetooth for VictronConnect App monitoring
- 92% round-trip energy efficiency
- Up to 2500 cycles at 80% depth of discharge
- 5-year warranty standard, extendable to 10 years
- Configurable in multiple series/parallel combinations
- Approximately 70% lighter than equivalent lead-acid batteries
- Comprehensive safety protections including temperature management
- M8 power connection terminals
Victron Energy LiFePO4 Battery 25.6V/100Ah Smart (BAT524110610) Specifications:
| Voltage | 25.6V nominal |
| Capacity | 100Ah (C20 rate) |
| Terminal Type | M8 insert |
| Weight | 28 kg |
| Energy | 2560Wh |
| Max Continuous Discharge | 200A |
| Max Continuous Charge | 200A |
| Operating Temperature (discharge) | -20°C to +50°C |
| Operating Temperature (charge) | 0°C to +45°C |
| Cycle Life @ 80% DoD | 2500 cycles at 25°C |
| Round-Trip Efficiency | 92% |
| Warranty | 5 years (extendable to 10 years) |
Victron Energy LiFePO4 Battery 25.6V/100Ah Smart (BAT524110610) Documents:
12.8V / 25.6V LiFePO4 Smart Battery Datasheet (Ed. 2)12.8V / 25.6V LiFePO4 Smart Battery DatasheetVictron Energy LiFePO4 Battery 25.6V/100Ah Smart (BAT524110610) Owner’s ManualVictron Energy LiFePO4 Battery 25.6V/100Ah Smart (BAT524110610) Datasheet
