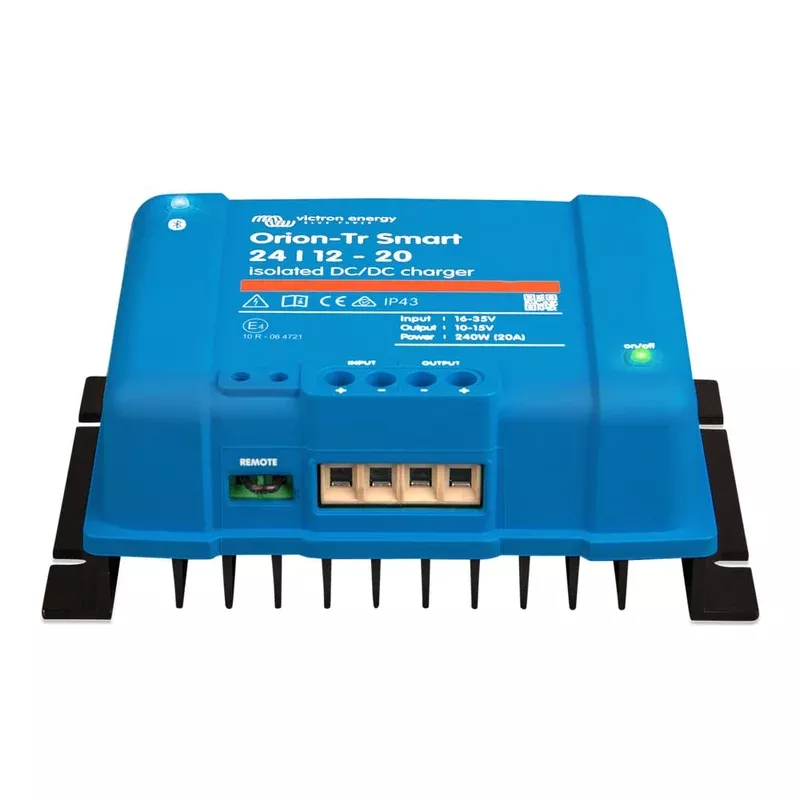

The Victron Energy Orion-Tr Smart 24/12-20A (240W) Isolated DC-DC charger (ORI241224120) from Nomadic Supply Company® is an isolated DC-DC charger with Bluetooth connectivity offering three-stage smart charging from 24V to 12V systems with 240-watt power capacity. Featuring programmable battery profiles, automatic engine detection, and remote monitoring via smartphone app, it delivers intelligent charging for dual-battery setups.
Victron Energy Orion-Tr Smart 24/12-20A (240W) Isolated DC-DC charger (ORI241224120) Features:
- Isolated DC-DC charger with Bluetooth Smart connectivity
- Three-stage adaptive charging: Bulk, Absorption, Float
- Programmable charging profiles via Victron Connect app
- Eight pre-configured battery chemistry settings
- Input voltage range 16-35V with protection circuitry
- Output voltage adjustable 10-15V for battery type matching
- Continuous 20A output with 240W power rating
- Automatic engine shutdown detection with D+ input
- Remote on-off capability with low-power control
- Efficient 87% power conversion with thermal management
Victron Energy Orion-Tr Smart 24/12-20A (240W) Isolated DC-DC charger (ORI241224120) Specifications:
| Input Voltage Range | 16-35V DC |
| Output Voltage Range | 10-15V (adjustable) |
| Continuous Output Current | 20A |
| Rated Power | 240W |
| Efficiency | 87% |
| Isolation | Galvanically isolated |
| Bluetooth | Yes – Bluetooth Smart |
| Pre-programmed Profiles | 8 battery types |
| Under Voltage Shutdown | 12V |
| Operating Temperature | -20°C to +60°C |
Victron Energy Orion-Tr Smart 24/12-20A (240W) Isolated DC-DC charger (ORI241224120) Documents:
Victron Energy Orion-Tr Smart 24/12-20A (240W) Isolated DC-DC charger (ORI241224120) Owner’s Manual
