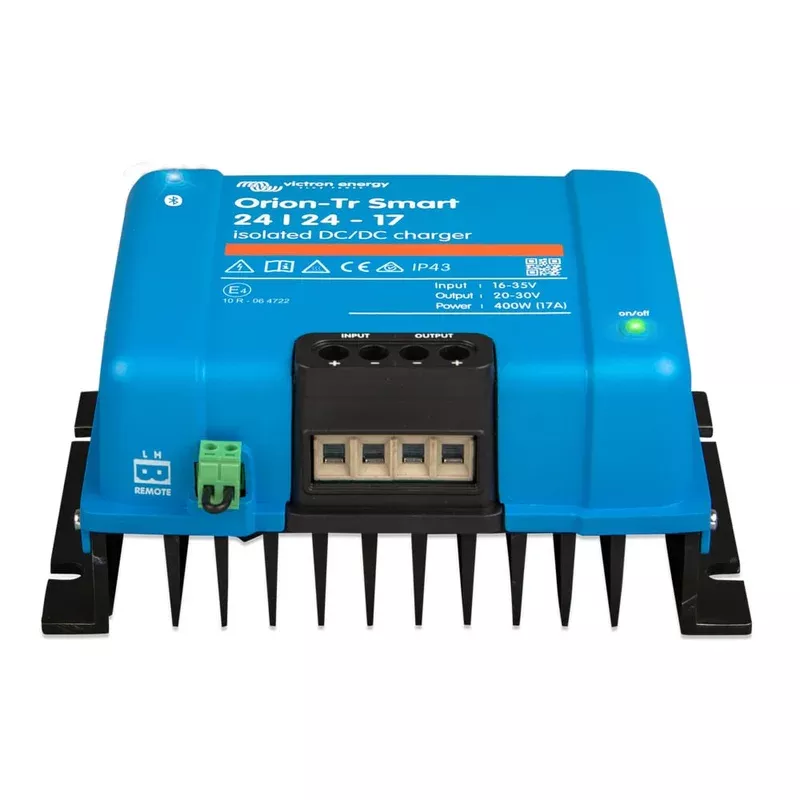

The Victron Energy Orion-Tr Smart 24/24-17A (400W) Isolated DC-DC charger (ORI242440120) from Nomadic Supply Company® is an isolated DC-DC charger with Bluetooth connectivity for same-voltage 24V charging with intelligent three-stage algorithm and 400-watt power capacity. Featuring programmable battery profiles, smartphone control via app, and automatic engine detection, it delivers precision charging for 24V auxiliary battery systems.
Victron Energy Orion-Tr Smart 24/24-17A (400W) Isolated DC-DC charger (ORI242440120) Features:
- Isolated DC-DC charger with Bluetooth Smart connectivity
- Three-stage charging: Bulk, Absorption, Float phases
- Programmable via Victron Connect smartphone app
- Eight factory pre-programmed battery chemistry settings
- Input voltage range 16-35V with protective shutdown
- Output voltage adjustable 20-30V for battery compatibility
- Continuous 17A output with 400W power capacity
- Automatic absorption time calculation for optimization
- Automatic engine shutdown detection via D+ input
- Under-voltage restart protection at 12V
Victron Energy Orion-Tr Smart 24/24-17A (400W) Isolated DC-DC charger (ORI242440120) Specifications:
| Input Voltage Range | 16-35V DC |
| Output Voltage Range | 20-30V (user-adjustable) |
| Continuous Output Current | 17A |
| Rated Power | 400W |
| Isolation | Galvanically isolated |
| Bluetooth Connectivity | Yes – Bluetooth Smart |
| Pre-programmed Profiles | 8 battery types |
| Efficiency | 89% |
| Operating Temperature | -20°C to +60°C |
| Thermal Management | Passive cooling with thermal protection |
Victron Energy Orion-Tr Smart 24/24-17A (400W) Isolated DC-DC charger (ORI242440120) Documents:
Victron Orion-Tr Isolated DC-DC Converters DatasheetVictron Energy Orion-Tr Smart 24/24-17A (400W) Isolated DC-DC charger (ORI242440120) 400wVictron Energy Orion-Tr Smart 24/24-17A (400W) Isolated DC-DC charger (ORI242440120) 400wVictron Energy Orion-Tr Smart 24/24-17A (400W) Isolated DC-DC charger (ORI242440120) Owner’s Manual
