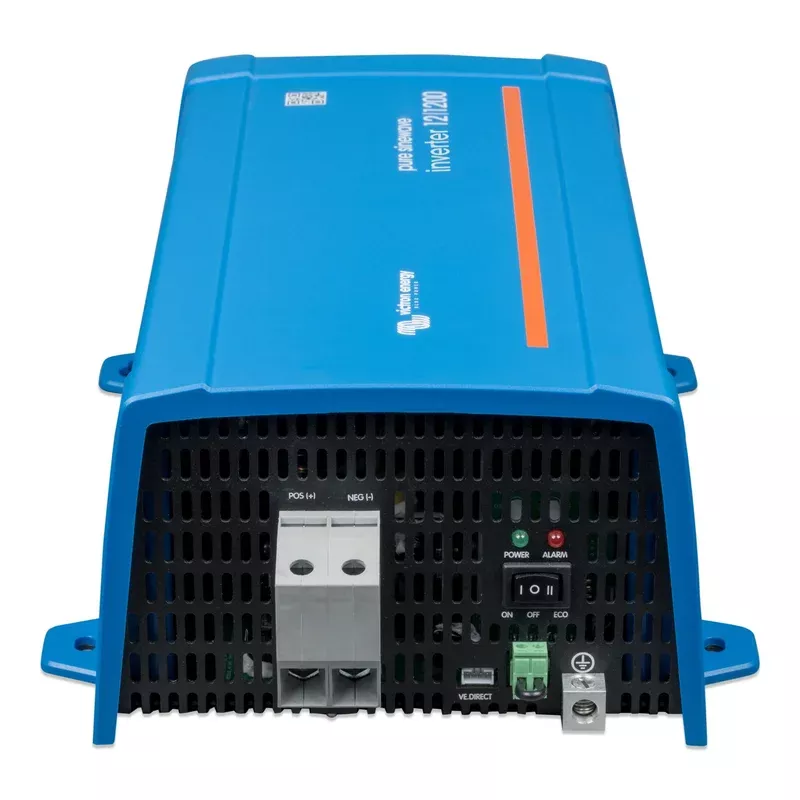

The Victron Energy Phoenix Inverter 12/1200 230V VE.Direct SCHUKO (PIN122121200) from Nomadic Supply Company® is 12V to 230V pure sine wave inverter with 1200VA capacity and Schuko receptacle outlet, designed for European installations. Features VE.Direct communication for remote monitoring and control. Delivers substantial power for running 230V equipment from 12V battery systems.
Victron Energy Phoenix Inverter 12/1200 230V VE.Direct SCHUKO (PIN122121200) Features:
- Pure sine wave output at 230V, 1200VA capacity
- VE.Direct communication port for device monitoring
- Schuko receptacle outlet
- Maximum efficiency of 91%
- Eco mode with adjustable auto shutdown
- User-configurable settings
- Low battery voltage alarm
- Dynamic cut-off capability
- Peak power output of 2200W
- Suitable for marine and off-grid use
Victron Energy Phoenix Inverter 12/1200 230V VE.Direct SCHUKO (PIN122121200) Includes:
- Inverter unit
Victron Energy Phoenix Inverter 12/1200 230V VE.Direct SCHUKO (PIN122121200) Specifications:
| Continuous Power @ 25°C | 1200VA / 1000W |
| Continuous Power @ 40°C | 850W |
| Peak Power | 2200W |
| Input Voltage Range | 9.2 – 17V DC |
| Output Voltage | 230VAC ±2% |
| Output Frequency | 50Hz (fixed) |
| Maximum Efficiency | 91% |
| Zero-Load Power | 8.0W |
| Dimensions | 4.6″ H × 9.1″ W × 12.9″ D |
| Weight | 16.3 lbs |
| Protection Rating | IP66 |
| DC Cable Size | 4 AWG maximum |
Victron Energy Phoenix Inverter 12/1200 230V VE.Direct SCHUKO (PIN122121200) Documents:
Phoenix Inverter VE.Direct 250–1600VA DatasheetVictron Energy Phoenix Inverter 12/1200 230V VE.Direct SCHUKO (PIN122121200) Owner’s Manual
