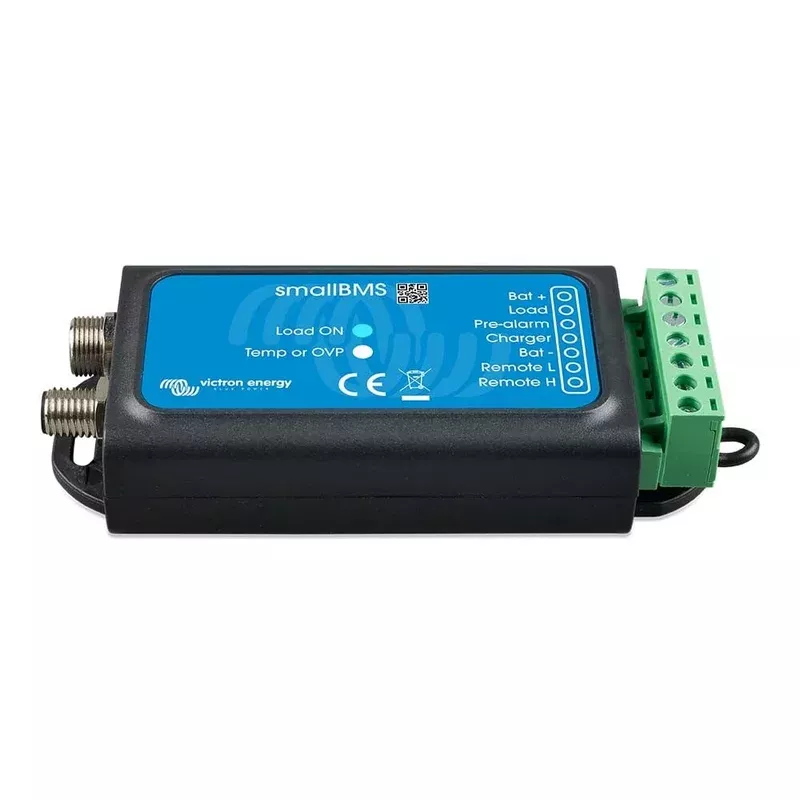

The Victron Energy SmallBMS for Smart LiFePO4-Bank w/ M8 (BMS400100000) from Nomadic Supply Company® manages and protects LiFePO4 batteries with M8 connectors.A simple and low-cost alternative to the VE.Bus BMS. The smallBMS can replace the VE.Bus BMS in several applications. It is however not suitable for use with VE.Bus MultiPlus and Quattro inverter/chargers: it has no VE.Bus interface.The smallBMS is intended for use with Victron Smart LiFePo4 batteries with M8 circular connectors. The smallBMS has three outputs, similar to the VE.Bus BMS. Load Disconnect output The Load output is normally high and becomes free-floating in case of the cell under voltage (default 2,8V/cell, adjustable on the battery between 2,6V and 2,8V per cell). Maximum current: 1A. The Load output is not short-circuit protected.Victron Energy The Load output can be used to control:
- A high current relay or contactor.
- The remote on/off the input of a Battery Protect, inverter or DC-DC converter, or other loads.
Victron Energy Pre-alarm outputThe pre-alarm output is normally free-floating and becomes high in case of the imminent cell under voltage (default 3,1V/cell, adjustable on the battery between 2,85V and 3,15V per cell). Maximum current: 1A (not short circuit protected).The minimum delay between pre-alarm and load disconnect is 30 seconds.Victron Energy Charge disconnect outputThe Charger output is normally high and becomes free-floating in case of imminent cell overvoltage or over-temperature. Maximum current: 10mA. The Charger output is not suitable to power an inductive load such as a relay coil.Victron Energy The Charger output can be used to control:
- The remote on/off of a charger
- A Cyrix-Li-Charge relay
- A Cyrix-Li-ct Battery Combiner
Victron Energy System on/off inputThe system on/off input controls both outputs. When off, both outputs will be free floating so that loads and chargers are turned off. The System on/off consists of two terminals: Remote L and Remote H. A remote on/off switch or relay contact can be connected between L and H. Alternatively, terminal H can be switched to battery plus, or terminal L can be switched to battery minus.Victron Energy Protects 12V, 24V and 48V systemsOperating voltage range: 8 to 70V DC.Victron Energy LED indicators:
- Load ON (blue): Load output high (cell voltage>2.8V, adjustable on the battery).
- Temp or OVP (red): Charger output free floating (due to cell over temperature (>50°C), cell under temperature (<5 °C) or cell over voltage).
Victron Energy SmallBMS for Smart LiFePO4-Bank w/ M8 (BMS400100000) Features:
- Lithium Battery Management. Compact BMS designed specifically for managing small Victron Smart LiFePO4 battery banks.
- M8 Terminal Connections. Heavy-duty M8 connection points for secure, high-current wiring to the battery bank.
- Cell Balancing. Active cell balancing ensures all cells in the battery bank maintain equal state of charge for maximum capacity and lifespan.
- Pre-Alarm and Disconnect. Protects the battery bank from over-discharge, over-charge, and over-temperature conditions with configurable thresholds.
- VE.Bus BMS Compatible. Integrates with the Victron system to signal charge and load disconnect to connected inverter/chargers.
Victron Energy SmallBMS for Smart LiFePO4-Bank w/ M8 (BMS400100000) Documents:
