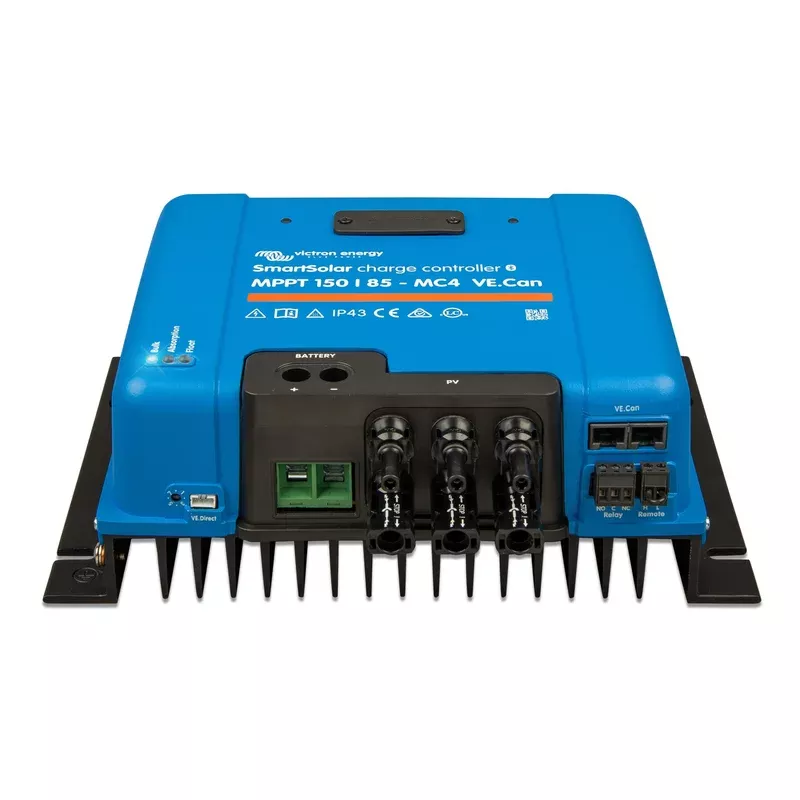

The Victron Energy SmartSolar MPPT 150/85-MC4 VE.Can Solar Charge Controller (SCC115085511) from Nomadic Supply Company® combines ultra-high charging capacity with MC4 connectors and VE.Can networking. Delivering 85A at 150V input, this controller excels in large multi-array systems with up to 25 synchronized units. Built-in Bluetooth enables wireless monitoring and remote configuration.
Victron Energy SmartSolar MPPT 150/85-MC4 VE.Can Charge Controller (SCC115085511) Features:
- Built-in Bluetooth with VictronConnect app
- VE.Can networking capability
- MC4 solar connectors for compatibility
- 85A maximum charging current
- 150V solar input voltage
- Multi-voltage support: 12V, 24V, 36V, 48V
- Synchronize up to 25 units via VE.Can
- Remote setup and monitoring
- Eight pre-programmed battery profiles
- Temperature-compensated charging
Victron Energy SmartSolar MPPT 150/85-MC4 VE.Can Charge Controller (SCC115085511) Specifications:
| Battery Voltage | 12V / 24V / 36V / 48V Auto Select |
| Rated Charge Current | 85A |
| Maximum PV Voltage | 150V |
| Maximum PV Short Circuit Current | 70A per terminal |
| Nominal PV Power @ 12V | 1200W |
| Nominal PV Power @ 24V | 2400W |
| Nominal PV Power @ 36V | 3600W |
| Nominal PV Power @ 48V | 4900W |
| Connector Type | MC4 |
| Communication | VE.Can + Bluetooth |
| Maximum Efficiency | >98% |
Victron Energy SmartSolar MPPT 150/85-MC4 VE.Can Charge Controller (SCC115085511) Documents:
Victron Energy SmartSolar MPPT 150/85-MC4 VE.Can Solar Charge Controller (SCC115085511) Owner’s Manual
