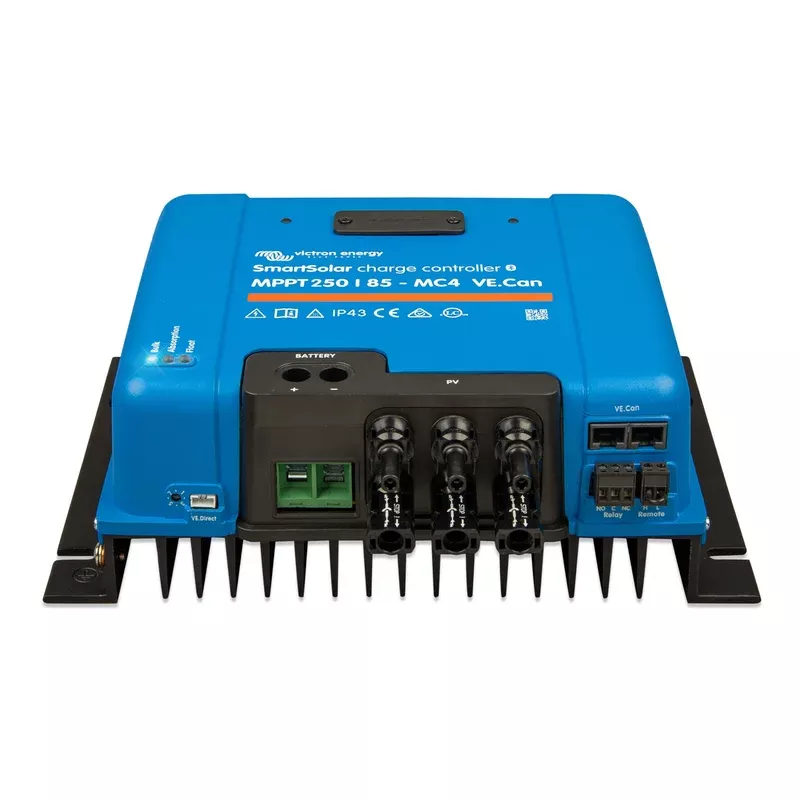

The Victron Energy SmartSolar MPPT 250/85-Tr VE.Can Solar Charge Controller (SCC125085411) from Nomadic Supply Company® is the Victron SmartSolar MPPT 250/85-Tr VE.Can brings professional-grade charge control to the largest solar installations. With 85A output at 250V input and VE.Can networking, this smart controller manages complex multi-array systems with synchronized operation. Screw terminals support robust connections in industrial environments.
Victron Energy SmartSolar MPPT 250/85-Tr VE.Can Charge Controller (SCC125085411) Features:
- Built-in Bluetooth with VictronConnect app
- VE.Can networking for large-scale systems
- Screw terminal connections for industrial use
- 85A maximum charging current
- 250V solar input voltage
- Multi-voltage support: 12V, 24V, 36V, 48V
- Synchronize up to 25 units via VE.Can
- Remote monitoring and configuration
- Eight pre-programmed battery profiles
- Temperature-compensated charging
Victron Energy SmartSolar MPPT 250/85-Tr VE.Can Charge Controller (SCC125085411) Specifications:
| Battery Voltage | 12V / 24V / 48V Auto Select |
| Rated Charge Current | 85A |
| Maximum PV Voltage | 250V |
| Maximum PV Short Circuit Current | 70A per terminal |
| Nominal PV Power @ 12V | 1200W |
| Nominal PV Power @ 24V | 2400W |
| Nominal PV Power @ 36V | 3600W |
| Nominal PV Power @ 48V | 4900W |
| Connector Type | Screw Terminal |
| Communication | VE.Can + Bluetooth |
| Maximum Efficiency | >98% |
Victron Energy SmartSolar MPPT 250/85-Tr VE.Can Charge Controller (SCC125085411) Documents:
Victron Energy SmartSolar MPPT 250/85-Tr VE.Can Solar Charge Controller (SCC125085411) Owner’s Manual
